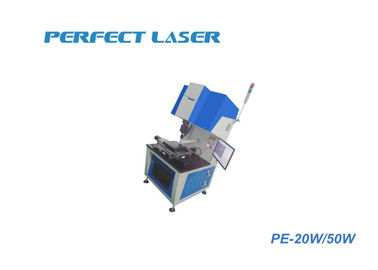

Full Steel 350×350mm Large-Format Laser Integrated Engraving Machine

Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine
Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine

Large Image :  Full Steel 350×350mm Large-Format Laser Integrated Engraving Machine

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA / SGS / TUV
Model Number: PE-20W/50W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-10 Working Days
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 3000 Unit per Month
Detailed Product Description
Laser Wavelength: 1064mm Laser Power: 50W
Scribing Line Width: 50um Workbench Wide: 350×350mm
Working Power Supply: 380V(220V)/50Hhz/3KVA Cooling Way: Air Cooling
Temperature Control Precision: 0.5℃ Workbench: Cell Automatic Adsorption, Dust Removal
High Light:

silicon wafer cutting machine

,

laser scribe machine

Full Steel 350×350mm Large-Format Laser Integrated Engraving Machine

Characteristics of the Product System:

1. Software upgrade: support the arc interpolation, circular arc cutting more smoothly;

2. The machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering;

3. Refactoring workbench processing part, open workbench processing area, loading operation more convenient. Remove spare parts from the workbench tablet, higher precision and not easy to deformation

4. Improve the screw parts: screw lead increased, so as to speed up the processing speed, guarantee machining accuracy;

5. Direct plug-in light path design, higher machining precision, better effect ;

6. Serve motor modification: run more smoothly, smaller cutting noise , more humanized design;

7. Authoritarian flat dust removal device, better processing effect;

8. To improve the laser signal control section, software is more stable and fast.



Application Field:

Solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).



Product Advantage:

1. Has applied for many national patents, the core parts adopt imported brand;

2. Fiber Laser, stronger adaptability to the environment;

3. Better beam quality(basic modeTEM000),thinner kerf width, more smooth edges;

4. Higher conversion efficiency, lower running cost, smaller equipment volume (air cooling);

5. The laser pulse width are more narrow, higher peak power, faster scribing faster;

6. Cell automatic adsorption no foot;

7. For a long time continuous operation without maintenance, no consumable parts repalcement;

8. Software upgrade to version 5.0, concentrated parameter control, software configurations;

9. Touch screen operation, serve motor driving(optional);



Time and Cost:

1.Reliable operation for a long time, long time without maintenance;

2.Specialized control software, friendly interface, simple programming, trajectory real-time display, let you learn to manipulate the machine in a short time

3.Upgrade the product, software upgrade to version 5.0, reduce the cost of buying such products greatly;

4.Free maintenance cycle is long enough for you to save a lot of maintenance costs.



Maintenance and Handling:

1. Integrated design, simple and easy to maintain;

2. Full steel body with spray paint, compression wear-resisting;

3. Multiple universal wheel lifting the feet, convenient and quick machine handling;



The Overall Structure:

1.A new generation of optical fiber laser scribing machine and efficient fine smooth cell scribing processing equipment

2.Fiber laser: imported fiber laser, higher environmental adaptation, better beam quality, (bisic code EM00), thinner kerf width, more smooth edges.

3.Motion platform: adopt international advanced vacuum adsorption technology;

4.Software interface: specialized control software, friendly interface, simple programming and trajectory real-time display;

5.Work station: primary operator control station, humanized design, simple, easy operation;

6.Crate: integrated design, without outer equipment, convenient plant layout and operation;

7.Cooling system: high precision professional integration constant temperature circulating water cooling system;

8.Warning lights: red, green and yellow warning light, simple tips equipment working condition;

9.Universal wheel: universal wheel move; Move fast and convenient;

10.Lift the foot: fixed , easy installation and moving.

Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine 0



The Main Technical Parameters:



laser wavelength 1064mm
Laser power 50W
Scribing line width 50um
Scribing speed 120mm/s
Scribing precision ±10um
Workbench wide 350×350mm
Temperature control precision 0.5℃
Working power supply 380V(220V)/50Hhz/3KVA
Workbench Cell automatic adsorption, dust removal
Cooling way High precision and constant temperature circulating water cooling professional integration Air cooling































Sample Show:

Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine 1



Packaging & Delivery:

1. Prompt deliver at the very day.

2. Sophisticated and professional logistic agent.

3. Well-trained and disciplined packing team.

4. After-sale service:. Any questions or problems after receiving the product, please feel free

to contact us. Problems would be solved for you immediately.



Competitive Advantages:

1. We offer high quality products at competitive price in quick delivery.

2. 100% custom pass guaranteed.

3. Good after-sale service.

4. Flexible and Untraceable payment terms.

5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.



Full Steel 350×350mm Large-Format  Laser Integrated Engraving Machine 2Full Steel 350×350mm Large-Format Laser Integrated Engraving Machine.pdf
