Fully Enclosed Optical EL Automatical Defect Detector No Noise FDA SGS TUV

Fully Enclosed Optical EL Automatical Defect Detector No Noise FDA SGS TUV

Fully Enclosed Optical EL Automatical Defect Detector No Noise FDA SGS TUV
Minimum Order Quantity:
1 Unit
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
7-15 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
Brand Name:
Perfect Laser
Model Number:
Product Name:
EL Automatic Defect Detector
Applicable Material:
Solar Modules Cracked, Debris, Weld, Broken Gate And Single Cell Conversion
Compressed Air:
Exposure Time:
0-60 Seconds Adjustable
After-sales Service Provided:
Engineers Service Overseas
High Light:
silicon wafer cutting machine , solar cell laser cutting machine
Product Description

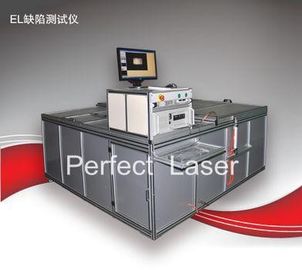

EL Automatic Defect Detector  PE-EL600D 800D




Excellent image quality: 12 million, 16 million imaging quality, no noise. Camera with semiconductor cooling, the lowest reach -20 ℃, excluding the impact of thermal noise, the image quality is further improved.

Fully enclosed optical design: fully enclosed optical system and thermostatic cooling system test environment is maintained at a constant temperature environment full darkroom and ensure the stability of the entire system operation; avoid uneven temperature due to external stray light, noise caused by test scores, ensures intuitive and accuracy of the test.

Powerful special test software: All Chinese display interface, automatic manual scan graphics code number and press to save the file encoding. Zoom scanned image shows detail, easy to judge.



Product Features


El automatic tester structure design, easy to adjust, can be easily achieved with th customer production line interface.

CCD camera with high-end imports of light-sensitive chip, excellent imaging results; and with a cooling function, the cooling effect of up to -20 ℃, can further improve image quality. Cameras into 12 million, 16 million pixels of different specifications, and dual cameras.

Professional PC software, not only can monitor the testing process, but also allows customers to directly mark defect types, along with the test results are saved. Having a local database query results can be achieved, but also has an interface function with the customer database system.

Test results can be uploaded in a timely manner, the device can also be reported to work. More features can be customized to customer needs. Automatic bar code scanning feature.




The device is used to detect the presence or absence of solar modules cracked, debris, Weld, broken gate and single cell conversion efficiency of different anomalies.








Effective Test Area

2000X1200mm(Can be Customized According to Customer Requirements)







Testing Component Type

Mono Crystalline, Poly Crystalline Module

Camera Type

Cooling type CCD

Cooling Temperature

Cooling to Room Temperature 20°C

Exposure Time

0-60 Seconds Adjustable

Compressed Air


Similar Defects can

be Detected

Detecting the presence or absence of solar cell modules cracked, debris,

Weld, broken gate and single cell conversion efficiency of different anomalies.




Specifically for solar silicon, poly crystalline silicon, the electrical properties of amorphous silicon cell module.
