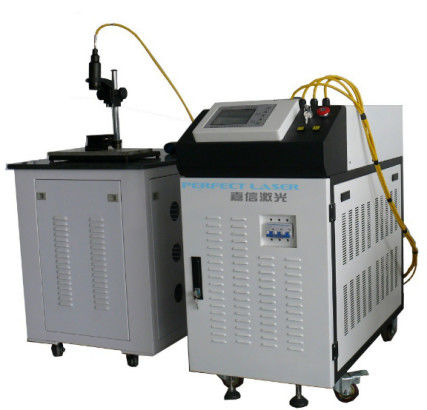

High Precision 6 Optical Paths laser welding systems fiber optic welding machine PE - W300G



Product Description:

PE-W300G laser welding machine is an optical fiber transmission 300W laser welding machine. It has a lot of new ideas in the aspects of equipment appearance, structure and human machine interface which is suitable for operation.

The equipment adopts integration design, with compact structure and aesthetic appearance, with beam mode, energy stability, stable performance, reliable use, fast welding, suitable for welding a wide range, consumables and consumable parts service life long and so on characteristics, taking full account of equipment in the batch production of the various parameters, from the details do key parameters adjustable closed loop data.



High precision welding of metal parts & electronic components, optical communication parts welding kinescope electronic gun welding, missiles detector welding, cell phone vibration motor welding, engine spark plug welding, detonators engine welding, automobile lights welding, and Xenon street lamps welding, especially for high precision photoelectric parts welding, sensors and electronic items welding.


Product Features:

1.This series of models has high output power, large energy, excellent laser beam mode, reliable performance, fiber transmission, and can do flexible processing to single-position / multi-position several positions at the same time;

2.It adopts advanced Germany combined gold-plated reflector cavity laser technology, and use special beam election mode and shaping technology, which ensure a high output power and excellent laser beam mode;

3.There is double-pulsed Xenon lamp incenting, constant current laser power, programmable pulse and intelligent zed management system, also the automatic protection system for mis-operation and water lack from super temperature;

4.Many optical paths (at most 6) fiber transmission output with light and time sharing, which is easy to match the working with the special fixture, anti-shocking optical platform;

5.The working platform which has strong applicability also can be designed to order according to the customers’ demands. The machine uses semiconductor red light for location (can select CCD coaxial / paraxial surveillance).


Model Parameters:

Type PE-W300G
Conduction type Optical fiber transmission (lamp pumped)
Machine power supply 380V±10%/50Hz
Laser type Nd:YAG pulse xenon lamp
spot size 0.2-3.0mm
Laser wavelength 1064nm
pulse width ≤15ms
laser power 300W
Pulse frequency ≤50Hz
Laser output focal length 150mm
Laser cooling water-cooling
Observation system Standard CCD
Fiber length 5 meters (standard)
Power consumption of the whole machine ≤9KW
Equipment size Main engine 1020*650*1100mm water machine 750*600*920mm



Laser Parts:

1) Laser

1 .Laser wavelength: 1.06 M

2 .Laser working material: Nd:YAG

3 .Output energy: 80J

4. Average output power: 300W

5 .Laser pulse frequency: 1-50Hz (continuous adjustable)

6. Laser pulse width: 0.5-15ms (continuous adjustable)

7 .Beam divergence angle: less than 8mrad

8 .Laser continuous working time: 24h


2) Laser power supply

Using a new type of power supply for single lamp pumped laser, the power supply from the main circuit, trigger circuit, simmer circuit, control circuit, protection circuit, frequency, pulse width, current can be regulated, the power supply with flow, undervoltage protection function.

1 .Input power: three-phase four wire: 380V + 5%

2 .Power input power rating: 9KW

3 .Pulse working current: 100-600A

4 .Power stability: less than 2.5%

5. Power supply with over current, under voltage, flow alarm device.

6 .With the number of laser work, the whole work time display function.


3) Guiding light focusing system

Two way fiber laser beam is used to output the laser beam combination focusing system, and its technical index is as follows:

1.Optical fiber with imported dual quartz fiber, core diameter: 0.6 mm, fiber length: 5m/ root

2.Working distance of laser focusing objective: 150mm

3.Minimum laser spot diameter: 0.2-0.5mm


4) Semiconductor laser light source system

1. Indicator system for red visible light

2.Wavelength: 0.6328um

3 .Power: 1mW


5) Cooling system

1.Water supply pressure: 40Kpa

2.The water is not less than 30L/Min

3.Water temperature regulation range: 10 -35

4.Accuracy: + 1.

5.Standard cooling capacity: 5.5KW

6.Input power: 2.3KW

7.With the laser power supply chain of under flow protection and over temperature protection.


6) Technical requirements:

1.YAG lamp pumped optical fiber transmission laser head

2.300W laser power

3 single pulse energy is not less than 80J

4.can be 1.5MM thick stainless steel plate on the (fight) welding

5.CCD observation system
