Product Details:
Payment & Shipping Terms:
|
| Processing Table Size : | 1600mm*1000mm | Laser Model : | Sealed CO2 Laser Tube |
|---|---|---|---|
| Processing Table: | Caterpillar Work Platform | Machine Power : | 3KW |
| Cutting Speed : | 0-72000MM/Min | Cutting Thickness : | 0.3-20mm |
| Cooling Mode : | Water Cooling And Protect System | Work Humidity: | 5-95% No Condensation |
| High Light: | co2 laser engraver,co2 laser engraving cutting machine |
||
Stepping Motor Large Size Co2 Laser Engraving Equipment With Auto Feeding System
(Model:PEDK-160100)
★ Product Introduction:
This series of products adopt imported proprietary sliding guide, and equip with auxiliary facilities, such as: blower, exhaust fan, infrared, foot pedal and other auxiliary facilities. Also, this series of products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software. They are suitable for a wide range of material from the surface laser processing. Especially some materials difficult for ordinary laser, such as white fabrics, cotton and flax expected, knitting materials.
★ Features:
1. Equipped with Caterpillar working table and auto feeding system, which can do continuous feeding and precision cutting.
2. Continuous stitching function.
3. Continuous cutting function when power off.
4. Equipped with mini air compressor and air pump.
5. Equipped with Imported focus lens and mirrors, fine laser beam, strong laser power.
6. Adopt strong cooling industrial-grade equipment .
7. Adopt Taiwan Hiwin precision linear square rails.
8. Easy operate, more humane design, users are more likely to start with;
9. Increase the added value of products.
10. Improve production efficiency.
11. Save the provincial labor, and material.
★ Application:
This laser cutting machine is widely used in clothing,footwear,luggage,computerized embroidery and clipping,model,electronic appliance,toys,furniture,advertisement decoration,packaging,printing,paper products,handicrafts and other industries.
★ Technical Parameters:
| Model |
PEDK-160100S One head |
PEDK-160100S(II) Double head |
PEDK-160260S One head |
PEDK-160260S(II) Double Head |
| Processing table size | 1600mm*1000mm | 1600mm*1000mm | 1600mm*2600mm | 1600mm*2600mm |
| Equip Rolling and Automatic Feeding System | ||||
| Laser model | Sealed CO2 laser tube | |||
| Processing table | Caterpillar work platform | |||
| Laser power | 150w (optional 100w 130w) | |||
| Machine power | 3KW | |||
| Cutting Speed | 0-72000MM/Min | |||
| Interface port | USB ports | |||
| Cutting thickness | 0.3-20mm | |||
| Work humidity | 5-95% No Condensation | |||
| Controlling Mode | CNC Professional Control System | |||
| Cooling Mode | Water Cooling and Protect System | |||
| Working Voltage | AC220V±10% 50HZ | |||
| Assist Equipment |
CW-5000 Water Chiller with temperature protection function, turbine dust exhaust, oil-water separator, silent air compressor |
|||
| Power Controlling Mode | Laser Energy Combining Movement Control System | |||
| Control Software | Original Perfect Laser’s Engraving & Cutting Software | |||
| Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
|||

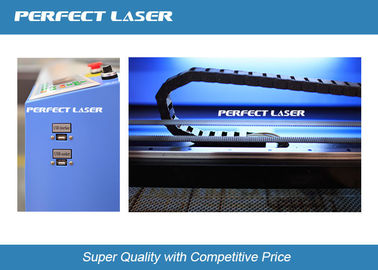

★ Machine Parts:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Stepping Motor Large Size Co2 Laser Engraving Equipment With Auto Feeding System.pdf
