| Processing Table Size : | 1600mm*1000mm | Laser Model : | Sealed CO2 Laser Tube |
|---|---|---|---|
| Processing Table: | Caterpillar Work Platform | Laser Power : | 150w (optional 100w 130w） |
| Machine Power : | 3KW | Cutting Speed : | 0-72000MM/Min |
| Cutting Thickness : | 0.3-20mm | Cooling Mode : | Water Cooling And Protect System |
| Highlight: | co2 laser cutting system,co2 laser engraving cutting machine |
||
Water Cooling and Protect System co2 laser cutter Of 0.3-20mm Cutting Thickness
★ Product Introduction:
PEDK-160100 laser cutting machine with high stability and high strength mechanical structure,caste by high accuracy model which can ensure stable data motion, high speed, high precision, long-term operation without adjustment and the same precision carving. The design idea of around the body through can add materials from before and behind which for infinite workpiece.
★ Features:

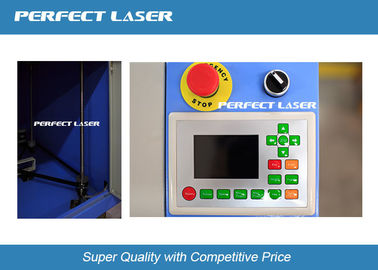

1. Control panel:New English operation interface, easy to operate.
2. Laser head:Our laser machine head use the high quality metal, which make the laser
head more strong and not easy to be broken by the smell and the fire.
3. Motor:Stepping motor with instant start and rapid stop the superior characteristics.
4. English button:Clear, simple and easy to operate.
5. Honeycomb table:Suitable for leather, fabric, paper and other soft materials.
6. Linear guide:High precise.
7. Control system:RD newest system. Working more stable, Rd system has the memory.
of 1Gb which can remember 800 pieces pictures that you worked.
8. Laser lens:the back side off the mirror we use the copper, which make the mirror temperature low down fast.
★ Application:
Suitable materials: Acrylic,double-color board,glass,crystal,marble,ceramic,wooden products, bamboo,leather,cloth,plastic,paper,rubber,MDF,wooden board and other non-metal materials.
Applicable industry: Advertising and signs,building decoration,arts and crafts,furniture,wooden package,toy,model,etc.
★ Technical Parameters:
| Model |
PEDK-160100S One head |
PEDK-160100S(II) Double head |
PEDK-160260S One head |
PEDK-160260S(II) Double Head |
| Processing table size | 1600mm*1000mm | 1600mm*1000mm | 1600mm*2600mm | 1600mm*2600mm |
| Equip Rolling and Automatic Feeding System | ||||
| Laser model | Sealed CO2 laser tube | |||
| Processing table | Caterpillar work platform | |||
| Laser power | 150w (optional 100w 130w) | |||
| Machine power | 3KW | |||
| Cutting Speed | 0-72000MM/Min | |||
| Interface port | USB ports | |||
| Cutting thickness | 0.3-20mm | |||
| Work humidity | 5-95% No Condensation | |||
| Controlling Mode | CNC Professional Control System | |||
| Cooling Mode | Water Cooling and Protect System | |||
| Working Voltage | AC220V±10% 50HZ | |||
| Assist Equipment |
CW-5000 Water Chiller with temperature protection function, turbine dust exhaust, oil-water separator, silent air compressor |
|||
| Power Controlling Mode | Laser Energy Combining Movement Control System | |||
| Control Software | Original Perfect Laser’s Engraving & Cutting Software | |||
| Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
|||
★ Machine Parts:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
