Product Details:
Payment & Shipping Terms:
|
| Color: | Blue & White/ Red & Black | Water Chiller Model: | CW-3000,5000 5200 |
|---|---|---|---|
| Laser Power: | 60w,80w,100w,120w,150w | Software: | Perfect Laser Professional Cut Software |
| Engraving Speed: | 0-70000 Mm/min | Cutting Speed: | 0-10000 Mm/min |
| Cooling Mode: | Water Cooling And Protect System | Laser Type: | Hermetic And Detached Co2 Laser Tube |
| High Light: | co2 laser cutting system,co2 laser engraving cutting machine |
||

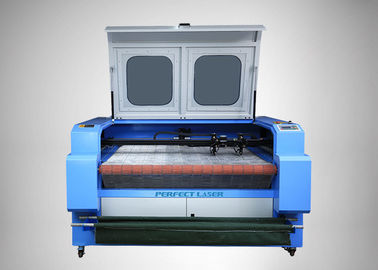

Perfect laser, the first domestic manufacturers of automatic cutting laser cutting machine manufacturers. PEDK-13090A automatic cutting feed laser cutting machine is research and development for the fabric, leather, carpets and other long processing of cutting and engraving. Equipped with automatic feeding system, making the entire fabric processing a one-time completion, do not need the middle of the manual intervention, convenient and time-saving.
★ Features:
1. LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
2. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
3. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
4. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
5. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
6. Optional Imported Ball Screw Rod, with high speed and accuracy, the laser fabric cutting machine is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
★ Application:
Garment Industry, trademarks, embroidery, clothing, fabric and crafts, toys, car, mechanism, electron as well as in advertisement, arts and other industries.
It is also called laser cutting machine for fabric,laser fabric cutting machine,laser engraver,Co2 laser cutting,laser carving machine.
★ Technical Parameters:
| Model | PEDK-13090A |
| Working Area | 1300×900mm |
| Laser Power | 60W / 80W / 100W / 120W / 150W |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Voltage | 220V(±10%) 50Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser Engraving & Cutting Software |
★ Machine Parts
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Automatic Feeding And Rolling CO2 Laser Engraving Machine For Cloth And Leather.pdf
