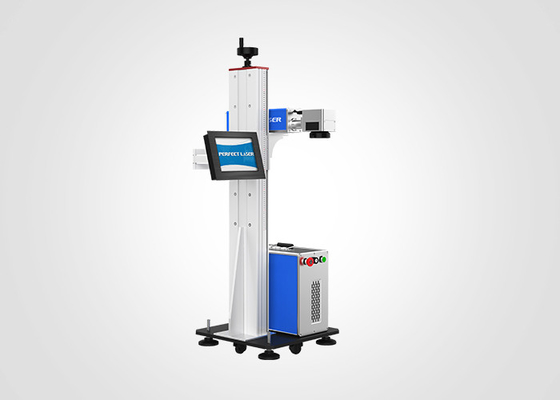

(Model:PEDB-600)
Perfect Laser online flying laser marking machine adopts the combination of automatic feeding system and rapid laser marking equipment, online marking has high production efficiency, stable quality, and online marking system is suitable for multitudinous sequence production.
The flying laser marking machine is suitable for users requiring batch production and high marking precision in food printing, medicine printing, soft-drink printing, cigarette code, wines industry, mineral water, daily cosmetic, wires and cables and all kinds of production lines.
The conveyor belt is optional items for you to choose and can be customized.
| Electronic Components : | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
| Apparatus And Meter: | Panel signs, precision equipment, etc., |
| Instrument: | Panel signs nameplates, precision equipment ,etc., |
| Hardware Tools : | Knives, tools, measuring tool, cutting tool, etc., |
| Automobile Parts : | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
| Mechanical Parts : | Bearings, gears, standard parts, motors, etc., |
| Daily Necessities : | Handicrafts, zipper, key holder, sanitary ware, etc., |
| Jewelry Rings | Jewelry, gold, silver,etc. |
| Food, drinking packing: | Plastic packings,etc. |
| Laser type | Fiber laser |
Maximum scanning speed |
10000mm/s |
| Laser wavelength | 1064nm | Cooling | Forced air |
|
Average output power |
20W(optional) | Supply requirements | 220V 50Hz |
|
Repetition frequency |
20kHz-60kHz | Consumption | ≤0.5kw |
| Line width | 0.15mm |
Environmental temperature |
-5℃-45℃ |
|
Minimum character height |
0.5mm |
Environmental humility |
10%-90% |
| Marking range |
110mm×110mm (differing from the lens) |
Maximum speed adapting production line |
200m/min(differing from the contents and materials) |
| Marking lines | Random in range | Software | Special system |
|
Displacement accuracy |
±0.001mm |
Hand-held display terminal |
10.2 inch |
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:.
Any questions or problems after receiving the product, please feel free to contact us.
Problems would be solved for you immediately.
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
