Product Details:
Payment & Shipping Terms:
|
| Keywords: | Portable Laser Etching Machine | Lifespan Of Laser Device: | 100,000 Hours |
|---|---|---|---|
| Laserr Coding Machine Speed: | 7000mm/s Fiber Laser Coding Machine | Cooling Mode: | Air Cooling |
| Laser Maximum Output Power: | 532nm | Repeat Accuracy: | ±0.001mm |
| Certification: | CE / ISO / FDA SGS / TUV | After-Sales Service Provided: | Engineers Service Overseas |
| Support Font: | TrueType Font, AUTOCAD Single Font, Customize Font | Temperature: | 10℃~35℃ |
| Humidity: | 5%~75% | ||
| High Light: | fiber laser marking machine,laser etching equipment |
||
(Model:PEDB-400F)
Product Introduction:
Fiber Laser Marking Machine is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. Such as Farm ear tag. The ear tags use fiber laser technology, have widely used in farm, laser ear tags are advanced which can best help farm identify and work well.
Application Field:
| Suitable materials | transparent glass, transparent acrylic, paper, plastic, colored pottery and other kinds of non-metallic materials and metal surface oxidation plating paint material |
| Applicable industry | Beverage industry(bottled or canned drinks, water), condiment industry’s anti-fake label |
Features:
1.The curve surface laser marking is suitable for any shape of 3D curve surface marking within the parameter requirements and marking different flat.
2. The dynamic laser marking is suitable for 3D surface curvature change and different planar continuous marking.
3. 3D fiber laser engraver can be processed material such as plastic, mold, metal surface and different flat parts.
4. Fiber laser metal engraving machine is according to the 3D surface shape can be processed automatically adjust to the laser focal length.
5. A high degree of consistency and repeat-ability.
Technical Data:
| The laser | The machine model | PEDB-400F-30 | PEDB-400F-50 | PEDB-400F-100 | ||
| The output power | 30W | 50W | 100W | |||
| Pulse energy | 1MJ | 1MJ | 1MJ | |||
| Repetition frequency | 30K-200KHZ | 50K-200KHZ | 5K-200KHZ | |||
| The laser wavelength, | 1064nm | 1064nm | 1064nm | |||
| process | Marking the scope | 110mm*110mm | 110mm*110mm | 175mm*175mm | ||
| The adjustable range | 175mm*175mm 300mm*300mm |
175mm*175mm 300mm*300mm |
300mm*300mm |
|||
| Focusing range | ≤±20mm | ≤±20mm | ≤±20mm | |||
| Marking way | XYZ Triaxial dynamic focusing | XYZ Triaxial dynamic focusing | XYZ Triaxial dynamic focusing | |||
| Minimum line width | 0.03mm | 0.03mm | 0.03mm | |||
| software | speed | ≤10000mm/s | ≤10000mm/s | ≤12000mm/s | ||
| Support font | TrueType font, AUTOCAD single font, customize font | |||||
| One dimension barcode | CODE39/CODE128/ITF/CODABAR/EAN/UPC etc. | |||||
| Two dimension barcode | QR/PDF417/DataMatrix (ECC200) etc. | |||||
| The input file | PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG/TIFetc. | |||||
| The whole machine | Environmental requirements | Temperature:10℃~35℃ Humidity: 5%~75% | ||||
| The input power | Single phase110V/220VOptional /50~60HZ | |||||
| The machine power consumption | ≤750W | ≤1200W | ≤1500W | |||
| Cooling way | Air cooling | Air cooling | Air cooling | |||
| The whole machine size | 1400mm×850mm×1699mm | |||||
| Control interface | PCI-Express/USB2.0 Optional | |||||

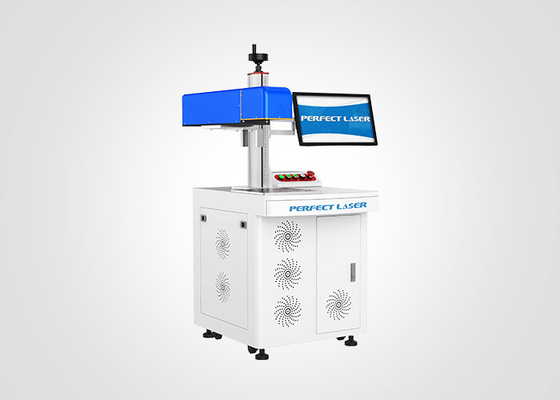

The Whole Machine:
Packaging & Delivery:
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages:
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
