Product Details:
Payment & Shipping Terms:
|
| Keywords: | Metal Etching Machine | Lead Time: | 7-10days |
|---|---|---|---|
| Laser Type: | Fiber Laser | CNC Or Not: | Yes |
| Cooling Mode: | Air Cooling | Laser Wavelength: | 10W 30W 60W Optional |
| Laser Maximum Output Power: | 532nm | Repeat Accuracy: | ±0.001mm |
| Certification: | CE / ISO / FDA SGS / TUV | After-Sales Service Provided: | Engineers Service Overseas |
| High Light: | fiber laser marking machine,laser marking equipment |
||
(Model:PEDB-400D)
Terms&Conditions of fiber laser marking machine
1.Payment method: T/T in advance,Alibaba Escrow,PayPal,L/C.
2.Price Validity: 1 month
3.Production lead time :7-10 working days.
4.Delivery Method: Compound wooden cases by sea (please indicate the destination port).
5.Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.
Application Field
Product Introduction

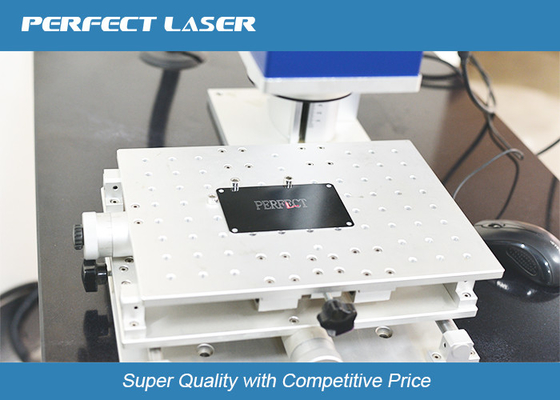

This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once recieved, the laser etcher could work directly without data adjustment.
Product Features
1.Best Marking Effect: the laser beam of fiber laser etching machine for metal is fine and thin. Laser etching steel can provide the best marking effect among all the laser machines. Especially good at smallest character marking, such as mark on IC chip.
2.Deep Marking: Perfect Laser fiber laser etching machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3.Higher Accuracy: The laser etching machine for metal can reach unto 0.001mm precision, while diode only 0.01mm.
4.10 Years Long lifetime: fiber laser etching machine use the fiber laser source made by Germany IPG technology, the lifetime can reach 100,000 hours, so the machine can be used for 8-10 years.
5. No consumables:The laser etching machine for metal can be used for metal marking for 8-10 years without any consumables.
6.No need to adjust the laser path.
7.Free of Maintenance.
8.Use Integrated Air Cooling.
9.Low Power Consumption: low cost, only 0.5kw/hour.
10. Small and compact: the volume of Perfect Laser’s fiber laser marking machine is small, only 0.15 M3.
Technical Data
| Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Standby |
| Computer | Not includes PC | Includes PC | ||
| Laser Source | ||||
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | |||
| Mode of operation | Pulsed | |||
| Polarization: | random | |||
| Nominal average output power | 10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D |
|||
| Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | |||
|
Emission Bandwidth (FWHM) |
<10 nm | |||
| Long-term average power instability | <5% | |||
| Pulse width, (FWHM) | 100 ns | |||
| Laser switching ON time | 180 μsec | |||
| Laser switching OFF time | 180 μsec | |||
| Pulse Repetition Rate* kHz | 20-80 kHz | |||
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ | |||
| Typical beam quality, M2 | <1.8 | |||
| Output fiber delivery length | 3m | |||
| Operating voltage: | 220V | |||
| Max. Power consumption: | 600W | |||
| Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system | ||||
| Scanning Speed: | 0-7000mm/s | |||
| Marking Speed: | 0-5000mm/s | |||
| Marking size: | 110mm×110mm (F-theta 160) | |||
| Spot size: | ≤ 40 micron (F-theta 160) | |||
| Cooling unit: | Air cooled | |||
| Pilot laser: | 650nm diode laser, visible red light for marking guide | |||
| Continuous working time: | ≥16h | |||
| Humidity: | 45～85% (no condensation) | |||
| Operating temperature: | 0~40℃ | |||
| Control units | Laser Mark (English Version) | |||
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
