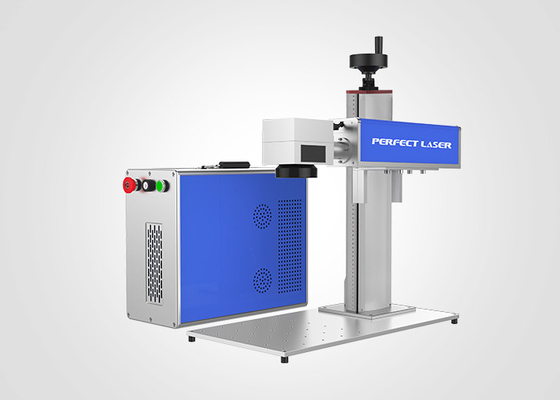

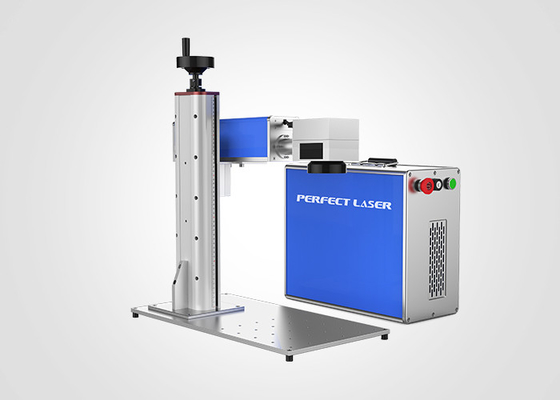

(Model:PEDB-400B)
Description
Our company uses fiber laser of high quality which produces perfect marking effect. 3D Dynamic Focus Shifting Working Table Fiber Laser Marking Machine is suitable for any shape of 3D Dynamic Focus Shifting Working Table Fiber Laser Marking Machine within the parameter requirements and marking different flat.
Application Field and Material
1. Auto machinery industry
2. Electronic communications industry
3. Hardware equipment industry
4. Buckle sign industry
5. Gauge glasses industry
6. Wooden craft industry
7. Packaging bottle caps industry
Technical Data
| Model No. | Newest Desktop small laser engraver metal engraving machine for metal materials | |||
| Laser Source | ||||
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | |||
| Mode of operation | Pulsed | |||
| Polarization: | random | |||
| Nominal average output power | 10W - 20W | |||
| Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | |||
| Emission Bandwidth (FWHM) |
<10 nm | |||
| Long-term average power instability | <5% | |||
| Pulse width, (FWHM) | 100 ns | |||
| Laser switching ON time | 180 μsec | |||
| Laser switching OFF time | 180 μsec | |||
| Pulse Repetition Rate* kHz | 20-80 kHz | |||
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ | |||
| Typical beam quality, M2 | <1.8 | |||
| Output fiber delivery length | 3m | |||
| Operating voltage: | 220V | |||
| Max. Power consumption: | 600W | |||
| Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm |
70*20*50cm | 143*62*101cm |
| Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system | ||||
| Scanning Speed: | 0-7000mm/s | |||
| Marking Speed: | 0-5000mm/s | |||
| Marking size: | 110mm×110mm (F-theta 160) | |||
| Spot size: | ≤ 40 micron (F-theta 160) | |||
| Cooling unit: | Air cooled | |||
| Pilot laser: | 650nm diode laser, visible red light for marking guide | |||
| Continuous working time: | ≥16h | |||
| Humidity: | 45～85% (no condensation) | |||
| Operating temperature: | 0~40℃ | |||
| Control units | Laser Mark (English Version) Optional Item |
|||
Product Features
| Best Marking Effect | the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip |
| Deep Marking | Perfect Laser’s Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm |
| Higher Accuracy | fiber laser can reach unto 0.001mm precision, while diode only 0.01mm |
| 10 Years Long lifetime | We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100,000 hours, so the machine can be used for 8-10 years |
| Low Power Consumption | low cost, only 0.5kw/hour |
| Small and compact | the volume of Perfect Laser’s Fiber Laser Marking Machine is small, only 0.15 M3 |
Optional Item
1. Rotary system for cylinder product
2. Safety glass
3. Online flying transfer belt system(includes the software)
Germany made Fiber laser Source
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries
