Product Details:
Payment & Shipping Terms:
|
| Table Load: | ≤320KG | Power Supply: | 220/380V±10%/50Hz |
|---|---|---|---|
| Laser Type: | Nd:YAG | Pulse Width: | ≤20ms |
| Xenon Lamp: | 8*150*300 (2 Units) | After-Sales Service Provided: | Engineers Service Overseas |
| High Light: | laser welding equipment,laser welding machinery |
||
I. Product Introduction

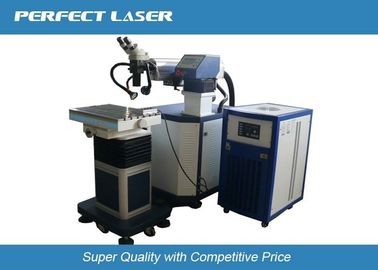

PE-W200J / PE-W300J / PE-W400J standard laser welding machine adopts concentrated fixed-point welding with high heat technology so as to deal with some welding and repairing work for small parts. Overcoming the shortcomings of traditional welding process on fine surface, the machine can avoid the thermal strain and post-processing.
II. Product Features
Specially designed for precision welding industry, the machine adopts unique structure and brings in Germany technology, more convenient for use. It has the following features:
1.Adopting British laser concentrated cavity, corrosion resistance and high temperature resistance, with lifetime 8-10 years. The cavity body can be stretched all around ( front, back, left and right), easy for handling operation.
A Adjust the knob show in the picture to pull cavity back and forth.
B Move cavity from left and right side.
2. Laser head can be rotated in 360 degrees, and the overall optical part can be rotated in 360 degrees, especially for bulk production.
3.X-axle and Y-axle of the working table is controlled by manual, and Z-axle of the working table and chamber is electrically lifted.
4.Adopting US laser welding head and the British original YAG xenon lamp, stable quality and low maintenance cost, 8 million times xenon lamp lifetime.
5.Intelligent remote controlling parameter adjustment.
6.Optional equipment: PLC controller, rotary auxiliary.
7.Spot size is electrically adjustable.
III. Application
PE-W200J / PE-W300J / PE-W400J standard welding machine welding materials are rich wide, including: cold work high alloy , High-toughness aluminum alloy and other metal materials, such as splicing welding welding.
IV. Technical Data
| Model | PE-W200J | PE-W300J | PE-W400J | |
| Table load | ≤200KG | ≤220KG | ≤320KG | |
| Power supply | 220/380V±10%/50Hz | 220/380V±10%/50Hz | 380V±10%/50Hz | |
| Cavity type | Ceramic cavity | Ceramic cavity |
Gold-plated double light cavity |
|
| Laser type |
Nd:YAG Pulsed xenon lamp |
Nd:YAG Pulsed xenon lamp |
Nd:YAG Pulsed xenon lamp |
|
| Xenon lamp | 8*115*255 | 8*125*270 | 8*150*300 (2 units) | |
| Crystal | 7*120 | 7*145 | 8*155 | |
| single pulse energy | 40J | 50J | 80J | |
| Water chiller power | 2700W | 2700W | 5000W | |
| Spot adjusting range | 0.1～3mm | |||
| Laser wavelength | 1064nm | |||
| Pulse width | ≤20ms | |||
| Maximum power | 200W | 300W | 400W | |
| Pulse frequency | ≤50Hz | ≤50Hz | ≤100Hz | |
| Laser output focal length | 100mm | 100mm | 100mm | |
| Cooling type | Water cooling | |||
| Observation system | Microscope, CCD optional | |||
| Protective gas | 1 road (argon) | |||
| Wire diameter | 0.1mm～0.6mm | 0.1mm～0.8mm | 0.1mm～1.0mm | |
V. Samples
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Aluminum Alloy Laser Welding Machine / Small Thermal Strain Key Parts , High Precision.pdf
