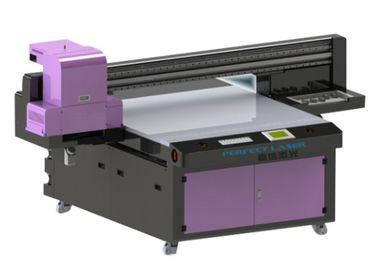

High Speed Multicolor Flatbed UV Printer with 8 Colors Ink System for Glass

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Speed Multicolor Flatbed UV Printer with 8 Colors Ink System for Glass

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA / SGS / TUV
Model Number: PE-UV1315
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Unit per Month
Detailed Product Description
NO. Of Print Heads: 2 Print Head Type: Epson DX5 Or DX7
Max Printing Size: 1300mm*1500mm Max Media Thickness: 80mm(130mm Optional)
Power Consumption: 2540mm*2200mm*1295mm Packing Dimensions: Max 100KG
Curing Lamp: Germany Osram LED Light RIP Software: USA PP PHOTOPRINT
High Light:

digital uv printer

,

epson flatbed printer

High Speed Multicolor Flatbed UV Printer with 8 Colors Ink System for Glass



Product Description of Flatbed UV Printer

Perfect laser is a prestigious company, which committed to specialize in various types of laser machine, production, provide the best sales and after-sales service. The printer uv format is 1300*1500mm, and it adopts bidirectional. Printing can increase the speed and efficiency of printing UV lamps alternately curing advantages. Theprinter uv's high production efficiency can greatly reduce production costs.



Product Features of Flatbed UV Printer

1. The printer uv use of high-quality dual nozzles, faster speed, higher accuracy and better quality.
2. Equipped with professional RIP software: The color management software is not only professional but also a well-known brand, with brilliant colors and excellent quality.
3. Imported well-known brand linear guides: high precision and very quiet, very stable operation, can greatly reduce the noise generated by the machine running, and longer life.High Speed Multicolor Flatbed UV Printer with 8 Colors Ink System



Application Field of Flatbed UV Printer

1. Glass industry: Various patterns can be directly sprayed on the glass surface to replace the manual painting.
2. Renovation decoration industry: printer uv can directly print patterns on the surface of decorative materials such as ceilings and density boards to meet the requirements of individual customization.
3. Signage industry: flat bed printer can print patterns on the surface of various hard signage materials, replacing the traditional signage process and reduce costs.



Model Parameters of Flatbed UV Printer

Model type Printer UV PE-UV1315
NO. of print heads 2
Print head type Epson DX5 or DX7
Printing resolution 2880*1440dpi(32 Pass),1440*1440dpi(16 Pass),1440*720dpi(8 Pass),720*720dpi(4 Pass),720*360dpi(2 Pass)
Lifting function Intelligent ink tank lifting,electronic-automatic/manual operation intelligent induction to inspect and adjust height
Printing speed 2 PASS 16M²/hr
4 PASS 8M²/hr
8 PASS 4M²/hr
12 PASS 3.7M²/hr
16 PASS 2.5M²/hr
File format TIFF(RGB & CMYK),BMP,PDF,EPS,JPEG
Interface High speed USB transmission interface
Print color High precision intelligent double 4 colors/4 colors(CMYK),double 8 colors/8 colors(white ink optional)
Ink system 1000ml*8 colors
Max Printing size 1300mm*1500mm
Max Media thickness 80mm(130mm optional)
Power consumption 50Hz/60Hz,110/220VAC(±10%),1.5KW
Operation system MS Window 98/Me/2000/XP/Win7
Operation condition Temperature 15℃~35℃,Reative humidity 20%~80%
Dimensions 2310mm*2100mm*1200mm
Packing Dimensions 2540mm*2200mm*1295mm
Sustain Weight Max 100KG
Curing lamp Germany Osram LED light
RIP software USA PP PHOTOPRINT
X axle rail brand and model Taiwan HIWIN mute linear guide rail
X shaft belt Japan Fujifilm industrial wire belt
X axis /Y axis servo motor Taiwan Delta
X axis beam Two times tempered high strength steel, high hardness, no deformation
X/Y axis print towline and wire harness Germany IGUS
Y shaft drive screw Imported grinding rod
Ink car lift rail brand Taiwan HIWIN mute linear guide rail
Platform type and accuracy Glass platform
Solvent capacity and liquid level alarm of main ink box 1L capacity, including liquid level alarm
Filtration and brand Cobetter
Negative pressure control mode Double negative color control
Negative pressure meter brand and model Japan Fujifilm
Electrical switch brand Japan Omron
Ink pipe France Saint-Gobain
X/Y/Z axis master control driver X/Y/Z three axis servo drive, delta exclusive research and development
Sprinkler board control National exclusive network card, 3 cable transmission, easy to upgrade
Ink circulation system White ink circulation, white ink mixing to prevent plugging
Frame structure All steel one-piece frame, non welded or locked aluminum frame



Product Sample of Flatbed UV Printer

High Speed Multicolor Flatbed UV Printer with 8 Colors Ink System for Glass 0High Speed Multicolor Flatbed UV Printer with 8 Colors Ink System for Glass 1

Packaging & Delivery

1. Prompt deliver at the very day.

2. Sophisticated and professional logistic agent.

3. Well-trained and disciplined packing team.

4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.

2. 100% custom pass guaranteed.

3. Good after-sale service.

4. Flexible and Untraceable payment terms.

5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
