Product Details:
Payment & Shipping Terms:
|
| Laser Power: | 500watt | Laser Type: | Fiber Laser |
|---|---|---|---|
| Transmission Method: | Ball Screw Transmission | Laser Technology: | Germany Technology |
| Cooling Mode: | Water Cooling | Certification: | CE / ISO / FDA |
| After-sales Service Provided: | Engineers Service Overseas | Cutting Area: | 1500*3000mm |
| CNC Or Not:: | Yes | Brand: | Perfect Laser |
| High Light: | fiber laser cutting equipment,laser metal cutting machine for sal |
||
Product Features
Machine large cutting area can meet the different needs of various kinds of metal processing, laser light through the optical fiber transmission, reduce the machine failure rate, prolong service life, so the laser light path without special maintenance or adjustment, at the same time, the machine adopts advanced fiber laser generator and bead wire rod mobile system, cutting and punching can be all kinds of metal materials, to achieve fast, the effect of high precision.
Specifications
| Model | PE-F300-3015 | PE-F500-3015 | PE-F1000-3015 |
| Laser Power | 300W | 500W | 1000W |
| Max. Cutting Thickness | 2~3mm | 3~5mm | 8~12mm |
| Work Table Max. Load | 700 KGS | 800 KGS | 1000 KGS |
| Laser Type | Imported Fiber Laser | ||
| Laser Technology | Germany Technology | ||
| Working area | 3000 x 1500 mm | ||
| X axis Stroke | 3000 mm | ||
| Y axis Stroke | 1500 mm | ||
| Z axis Stroke | 150 mm | ||
| Max. Cutting Speed (Carbon Steel) |
12m/min (up to materials) | ||
| Transmission Way | Imported ball screw | ||
| Table-Driven System | Japanese Panasonic Servo Motor & Driver | ||
| Focus Method | Dynamic Following and Automatic Adjust Focus | ||
| Location Precision | ≤±0.05 mm | ||
| Re-Location Precision | ±0.02 mm | ||
| Max. Moving Speed | 100m/min | ||
| Laser Wavelength | 1070nm | ||
| Minimum Line Width | ≤0.1mm | ||
| Supporting Format | PLT, DXF, BMP, AI | ||
| Power Demand | 380V/50HZ | ||
| Control Method | Offline Movement Control | ||
| Control Software | Perfect Laser Professional Laser Cutting Software | ||
Product Advantages
1. Its fast cutting speed is twice that of the ordinary laser cutting machine, and its efficiency is very high.
2. Optical fiber laser cutting machine, no reflection lens is required, which saves a lot of time when adjusting the optical path. The laser generator needs no maintenance and its life is extended
3. Applicable to special cutting technology of steel plate, laser cutting will not produce any pollution gas, environmental protection and environmental damage.
4. Compared with ordinary laser cutting machine, the power consumption is very low, which reduces by 20% to 30%.
Application
Applicable materials:Mainly used for cutting all kinds of metal materials, such as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel plate, pickling board, aluminum zinc plate, copper, etc.
Applicable industrial fields:Sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, metallurgical equipment, elevators, household appliances, gifts and crafts, tool processing, precision parts, ships, decoration, advertising, metal foreign trade processing and other manufacturing processing industries.

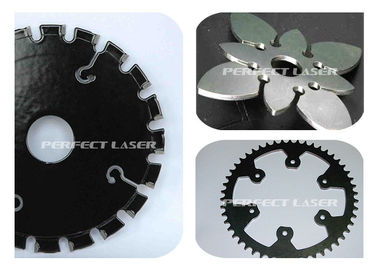

Sample Show
Packaging & Delivery
| 1. Prompt deliver at the very day. |
| 2. Sophisticated and professional logistic agent. |
| 3. Well-trained and disciplined packing team. |
| 4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately. |
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
