Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Welding Path Channel Letter Laser Welding Machine | Usage: | Laser Welding |
|---|---|---|---|
| Wavelength:: | 1064nm | Max Laser Power:: | 220w |
| Certification: | CE / ISO / FDA SGS / TUV | After-Sales Service Provided: | Engineers Service Overseas |
| Highlight: | laser welding equipment,laser welding machinery |
||
Product Description

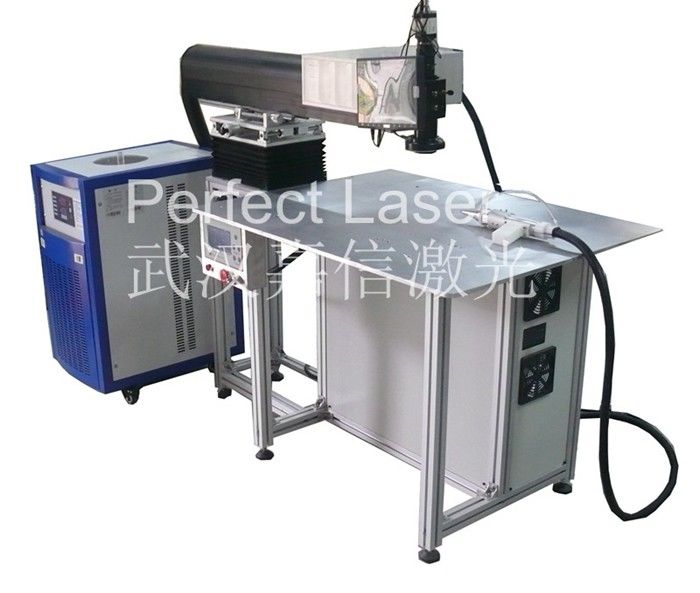

The advertising letter laser welding machine is also called the advertising laser welding machine, laser welding machine, stainless steel word laser welding machine and so on. Through laser power of xenon pulse discharge, the formation of certain frequency and pulse width of light through the condenser cavity radiation to Nd: YAG crystal, crystal light after resonant a 1064 nm pulsed laser, again by a beam expander, reflection, focusing, and welding. The overall appearance is beautiful, with high performance bearing work platform, handle type operation is simple, cost-effective higher for all kinds of advertising industry, small welding processing industry.
Application
Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.
Product Features
1.Marble working platform, to ensure that the bright face plate does not scratch.

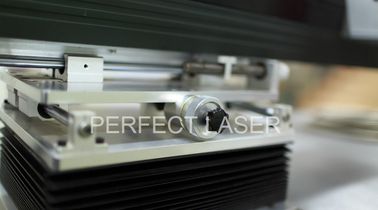

2.Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
3.Small thermal deformation and heat affected zone.
4.local heat treatment can be carried out on the metal word;
5.Available for the processing of complex shape of parts and small words.
Specification
| Model | PE-W300I | PE-W400I | PE-W300II | PE-W500II | |
| name | 300W Laser welding machine | 400W Laser welding machine | 300W Double light path Laser welding machine hand held | 500W Double light path Laser welding machine hand held | |
| Custom Code | 8515800090 or 8515809090(the other welding machine and equipment) | ||||
| Machinery Part | Laser cavity length of 1100 mm, the laser head can rotate 360 degrees. | ||||
| Working Area | 750*1000MM | ||||
| Load Bearing | ≤200KG | ||||
| Machine power supply | 220V±10%/50/60Hz | 380V±10%/50/60Hz | 220V±10%/50/60Hz | 380V±10%/50/60Hz | |
| Laser Type | Nd:YAG impulse xenon lamp | ||||
| Spot Size | 0．2-3．0mm | ||||
| Laser Wave Length | 1064nm | ||||
| Impulse width | ≤10ms | ||||
| Laser Power | 300W | 400W | 300W | 500W | |
| single pulse energy | 90J | 120J | 90J | 120J | |
| Impulse Rate | ≤30Hz | ≤50Hz | ≤30Hz | ≤50Hz | |
| Laser output focal length | 150-250mm | 150-250mm |
150-250mm Lase head 120mm |
150-250mm Laser head120mm |
|
| Laser Cooling | Water cooling | ||||
| Cooling Capacity | 2700W | 5000W | 2700W | 5000W | |
| Total power | <7KW | <12KW | <7KW | <12KW | |
| Viewing System | CCD | ||||
|
Machine Size Water Chiller |
1400*800*1100mm 600*420*750mm |
1500*800*1100mm 900*600*950mm
|
1400*800*1140 600*420*750mm |
1450*800*1100mm 900*600*950mm
|
|
| Package Size(machine body) |
1500*830*1240mm
|
1600*800*1240mm 960*760*1150mm
|
1500*830*1280mm
|
1530*810*1200mm 960*760*1150mm
|
|
| Gross Weight | 280KG | 430KG | 300KG | 450KG | |
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Channel Letter Signage Automatic Laser Welding Machine Laser Welder.pdf
