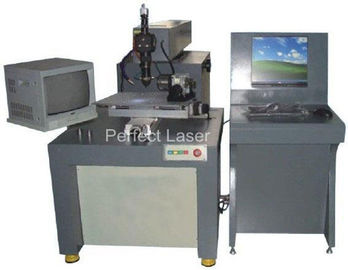

Gold Silver Platinum 1064nm Laser Welding Machine Separate Model 16KW

large.img.alt
small.img.alt

Large Image :  Gold Silver Platinum 1064nm Laser Welding Machine Separate Model 16KW

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA / SGS / TUV
Model Number: PE-W500DS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 7-15 Working Days
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 300 Units Per Month
Detailed Product Description
Product Name: Separate Model Laser Welding Machine Applicable Material: Gold, Silver, Platinum, Stainless Steel, Titanium
Laser Material: Nd: YAG Crystal Laser Rated Power: 500W
Certification: CE / ISO / FDA SGS / TUV After-sales Service Provided: Engineers Service Overseas
High Light:

laser welding equipment

,

automatic laser welding machine

500W Gold Silver Platinum Separate Model Laser Welding Machine PE-W500DS





Description




Laser welding machine has high quality beam and high precision welding, particularly suitable stainless steel, carbon steel and other metal materials welding. The control system uses a dedicated control software and control board, which provides a good user interface, enabling 3-axis. By using Auto CAD or electronic chart to produce complex graph, it can be imported directly into the control interface for fine processing. Machine has feature of stable and reliable working, good processing quality, high efficiency, simple operation, easy maintenance.




Product Features




The machine can easily adjust the height of the two-dimensional table and the rotary fixture, deflect angle of incidence of the laser, select parameters of laser output power, frequency and pulse width. It also has the function of having-misuse and over-temperature protection, output waveform settings. Two-Dimensional table and rotary fixture can be controlled by IPC or PLC optionally.





Application




Widely used in the welding of gold, silver, platinum, stainless steel, titanium and other metals and alloys,it has been widely used in industry of aviation, aerospace, weapons, ships, petrochemicals, household appliances, daily necessities, medical, instrumentation, electronics, automotive and Patches of mold and other industries.





Specifications





Laser Wavelength

1064 nm

Laser Material

Nd: YAG Crystal

Laser Rated Power

500W

Pulse Width

0.5-20 ms

Pulse Frequency

1-100 Hz

Power Instability

≤ ± 3%

The Maximum Pulse Energy

 125J

Table Travel

150 mm × 100 mm

Working Current

100 ~ 450 A

Power Supply

380V ± 10% / 50Hz

Continuous Working time

≥16 Hours

Focus Lens Focal Length

100mm

Maximum Input Power

 16KW





Sample Show





Gold Silver Platinum 1064nm Laser Welding Machine Separate Model 16KW 0





Packaging & Delivery




1. Prompt deliver at the very day.


2. Sophisticated and professional logistic agent.


3. Well-trained and disciplined packing team.


4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages




1. We offer high quality products at competitive price in quick delivery.


2. 100% custom pass guaranteed.


3. Good after-sale service.


4. Flexible and Untraceable payment terms.


5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.



Gold Silver Platinum 1064nm Laser Welding Machine Separate Model 16KW 1Gold Silver Platinum 1064nm Laser Welding Machine Separate Model 16KW.pdf
