High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
7-15 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / SGS / TUV
Model Number:
PEDK-13090A
Product Name:
Fabric Rolling And Cutting Machine
Application:
Laser Engraving/Laser Cutting
Laser Type:
CO2, Hermetic And Detached Co2 Laser Tube
Working Area:
1300*900mm,1300*1800mm,1600*1000mm,1300*2500mm,1600*2600mm
Control Software:
Reader Engraving & Cutting Software
Cutting Platform:
Professional Thicken Strip/ Honeycomb Working Table
Laser Power:
60w, 80w, 100w, 120w, 150w
Cooling Mode:
Water Cooling
Certification:
CE / ISO /SGS / TUV
After-sales Service Provided:
Engineers Service Overseas
Highlight:
co2 laser cutting system , laser engraving machine
Product Description

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine

(Model:PEDK-13090A)



►Product Description


Garment Fabric Textile Rolling and Auto Feeding Laser Engraving and Cutting Machine fixed with a selective rolling & automatic feeding system, which make the whole cloth processing steps finish one time.
Suitable for engraving/cutting on very long work piece, such as one roller of cloth, fabric, leather, garment. Auto Feeding Laser Engraving Machine especially applied in Fabric and Garments Industry.



High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 0



Product Features


1. Install Automatic Feeding and Rolling System to make the whole cloth processing steps finish one time, suitable for engraving/ cutting on very long work piece, such as one roller of cloth/ fabric/ leather/ garment.

2. Matched software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system, also can according to your requirement to set the engraving length of material.
3. Adopt thickness crawler type working table, which can push material and keep them as planar / even / flat surface during working.
4. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
5. LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
6. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
10. Red Light Pointer realizes the exact position without laser.
11. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.



High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 1

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 2

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 3

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 4High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 5

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 6

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 7

High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 8





►Product Advantage


1. Auto rolling & automatic feeding system
2. America focus lens& reflect mirrors
3. LCD Touch
4. CE



Specifications



Model

PEDK-

13090A

PEDK-160100A

PEDK-130180A

PEDK-130250A

PEDK-160260A

Working Area

1300×900mm

1600×1000mm

1300×1800mm

1300×2500mm

1600×2600mm

Laser Power

60W / 80W / 100W / 120W / 150W

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

1-60000mm/min

Cutting Speed

1-10000mm/min

Repeat Location

Accuracy

± 0.0125mm

Laser Power Controlling

1-100% Manual Adjustment and Software Controlling

Voltage

220V(±10%) 50Hz

Cooling Mode

Water Cooling and Protect System

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Controlling Mode

CNC Professional Control System

Support Graphics

Formats

BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG,

DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT

Power Controlling Mode

Laser Energy Combining Movement Control System

Control Software

Original Perfect Laser Engraving & Cutting Software





Application


1. Fabric rolling and cutting machine is widely used in garment material: leather engraving and cutting,

textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
2. Also can work for advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
3. Wood material: wood engraving and cutting, MDF engraving, plywood cutting.

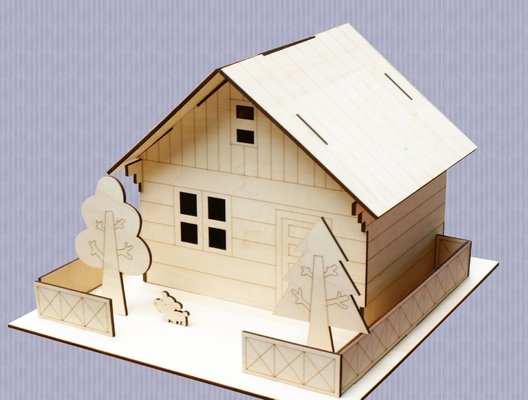

Samples





High Power CO2 Laser Cutting Machine / Auto Feeding Garment Laser Cutting Machine 9





Packaging & Delivery


1. Prompt deliver at the very day.

2. Sophisticated and professional logistic agent.

3. Well-trained and disciplined packing team.

4. After-sale service:  Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.

2. 100% custom pass guaranteed.

3. Good after-sale service.

4. Flexible and Untraceable payment terms.

5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
