Specifications
|
Model |
PEDK-6040R |
PEDK-9060R |
PEDK-13090R |
|
Working Area |
600×400mm |
900×600mm |
1300×900mm |
|
Laser Power |
50W / 60W |
60W / 80W / 100W |
60W / 80W / 100W / 120W / 150W |
|
Laser Type |
Hermetic and Detached Co2 Laser Tube |
||
|
Engraving Speed |
1-60000mm/min |
||
|
Cutting Speed |
1-10000mm/min |
||
|
Repeat Location Accuracy |
± 0.0125mm |
||
|
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
||
|
Voltage |
220V(±10%) 50Hz |
||
|
Cooling Mode |
Water Cooling and Protect System |
||
|
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
||
|
Controlling Mode |
CNC Professional Control System |
||
|
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, |
||
|
Power Controlling Mode |
Laser Energy Combining Movement Control System |
||
|
Control Software |
Original Perfect Laser Engraving & Cutting Software |
||

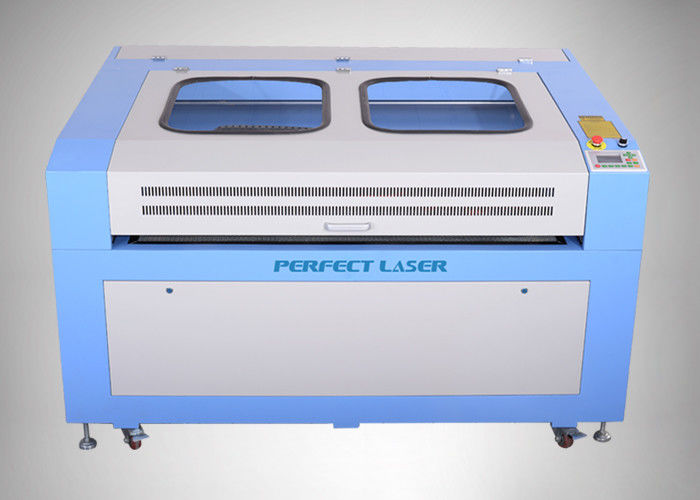

Description
This series products adopt imported proprietary sliding guide,and equip with auxiliary facilities, such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.
Also, this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.
Product Features
1. Can choose optional item of rotary system. Adopt “Rotary Fixture” and “Motorized up and down Table” to realize engraving circumrotately 360 degree along the circle of cylindrical or column work pieces.
2. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
3. LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
10. Red Light Pointer realizes the exact position without laser.
Application
Available Materials:
1. It’s widely used in advert
isement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexi glass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
Application Industry:
Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Product Advantage
|
Items |
Perfect Laser |
|
Thickness of Body Shell |
We adopt thicker body shell and the thickness reaches 3mm, which is more safe and distortion prevention for 5-10 years. |
|
Working Platform |
We adopts the US-imported working platform made of aluminum alloy, |
|
Laser Tube |
The lifespan is 10000 hours. Every laser tube must pass the professional |
|
Laser Parts |
Our laser parts are manufactured through die stamping technology and on-line |
|
Protection Function |
Our laser engraving and cutting machine can turn off the laser |
|
Water-cooling Machine |
Our machines are equipped with the most advanced CW-5000 and CW-5200 water-cooling machine with good cooling effect, low noise and low power consumption. |
|
Unique Light-adjusting |
Focus Length Adjusting Parts: |
|
Special Scale Design |
Scale is engraved at the edge of our working platform. It will be more |
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
