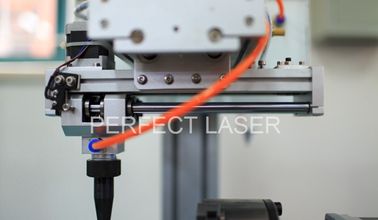

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine
Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine
Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine
Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine
Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine
Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
5-10 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PEQD-025
Product Name:
Rotary Dot Peen Marking Machine
Application:
Metal Engraving
Machine Power:
≤400 W
Working Area:
150mm×100mm Or Customized
Pin Hardness:
92HRA Metal Engraving Machine
Marking Depth:
0.1-2mm Metal Engraving Machine
Certification:
CE / ISO / FDA SGS / TUV
After-sales Service Provided:
Engineers Service Overseas
High Light:
dot peen marking equipment , pneumatic engraving machine
Product Description

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine



Description



Dot peen marking machine (also call pin marking machine/stylus marker) is a kind of pneumatic marking machine that works by the vibration caused by the compressed air and the mechanical device.
This type machine is used to mark on various metals and other hard plastic. The dot peen marking machine is an industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal / no-metal materials) permanently.



Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 0

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 1




Application



Dot peen marking machine is applicable for the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc.



Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 2




Specifications




Item Rotary Dot Peen Marking Machine
Model PEQD-025
Marking Area: 150×100mm 200×100mm 300×200mm 400×300mm Customized
Marking Depth: 0.01~2mm
Marking Speed: ≤50mm/s (for Characters Height of 3mm / 3-4 Numbers /Second)
Z Axis Lifting Range: 0-300 mm or Customized
Rotary Clamper Range 0-150mm 0-200mm
Air Pressure 0.2-0.6Mpa
Marking Accuracy: 0.01 mm
Pin Hardness: HRA 92
Power Supply: 220V±10%, 50HZ
Air Pressure: 0.2-0.6 Mpa
Machine Power: ≤400 W
Working Environment: -5~40 ℃
Whole Machine Weight: 66 Kgs
Measurement: 0.3 m2




Product Features



1. Support both 2D flat marking and 3D rotary marking. The rotary type is suitable for marking both flat and all kinds of cylindrical, conical & spherical workpieces. The rotary range is 0-150mm or 0-200mm.
2. Adopt imported hard alloy, and is made up by precision mould and molding for once. The rigidity of marking pinhead can reach-92HRA. Its’ excellent processing ability during work ensures the accuracy of high-speed marking & can make perfect marks on the work-pieces.
3. Adopts American MAC “High-Frequency Valve”. The vibration lifespan can reach 0.1-0.2 billion times, so as to ensure the long and stable operation of the machine.
4. Adopt Japan OMRON “positioning switch”, which can guarantee high accuracy& steadily performance.

5. Adopt Germany import “linear-moving guide rail”, can automatically lubricate & air-proof as well as dust-proof. Therefore, it guarantees the equipment with long-time stable performance & high accuracy.
6. Operated by WINDOWS software. The interface is friendly and easy. With a particular “Path Pre-setting” function, the equipment will be much easy to use during processing of the work-pieces.The function “self-inspection for common malfunction” makes a convenient & quick maintenance for operators.
7. Adopt “marking steel-sheath system”, which own-exploited by PERFECT LASER, had solved the problem of big-noise that frequently occurred in dot peen marking machine during marking processing.
What’s more, with the advantages of little abrasion rate & only require about 0.2Mpa air pressure, so our machines are economical to avoid unnecessary wasting in energy & cost.
8.The lifetime could exceed 10 years. The average MTTF could exceed 15000 hours. This machine is free of maintenance and low running cost.
9. Rotary dot peen marking machine can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
10. Support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.




Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 3

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 4

Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 5


Optional Item

Nameplate Fixture



Sample Show



Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 6




Packaging & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.




Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 7

Competitive Advantages



1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine 8Round Cylinder Rotary Dot Peen Marking Machine / Metal Engraving Machine.pdf
