Application
Applicable Field : Multi-spindle CNC Router is used in many fields such as woodworking industry and other industry such as Carving Series, relieve series and handcraft industry. Which is widely applied in aluminum engraving,aluminum cutting, 3D hollow cutting, LED, Groove word cutting and neon light, plastic Light boxes cutting, Acrylic Engraving, Acrylic Cutting ,copper boards engraving, copper boards engraving ,PVC boards engraving, PVC boards cutting, artificial stone engraving, artificial stone cutting , MDF board engraving, MDF board cutting and other metal processing.
Specifications
|
Machine Model |
PEM-1325-2 |
PEM-1325-4 |
PEM-1325-6 |
PEM-1325-8 |
|
Working Area |
1300*2500*200mm |
|||
|
XYZ Guide Rail |
Square Rail |
|||
|
X,Y Transmission |
Rack Gears |
|||
|
Spindle Motor |
3KW (Optional :4.5kw,6kw, 8kw) |
|||
|
Software |
ARTCUT(English) / TYPE3 Software |
|||
|
Driver |
Stepper Motor (Optional :Servo Motor) |
|||
|
Spindle Speed |
0-24000 RPM |
|||
|
Max Engraving Speed |
20000mm/min |
|||
|
Working Voltage |
AC220V 50HZ/60HZ |
|||
|
Blade Diameter. |
3.175mm,4mm,6mm(or8mm,12mm,12.7mm) |
|||
|
X,Y,Z Repositioning Positioning Accuracy |
±0.02mm |
|||
|
X,Y Resolution |
0.01mm |
|||
|
Engraving tools dia |
Φ3.175, Φ4, Φ6, Φ12.7 |
|||
|
Interface |
PCI Port or USB Port |
|||
|
Memory buffer (Flash) |
128MB |
|||
|
Engraving Command |
G code, u00, mmg, PLT, HPGL |
|||
|
Command language system |
English Version, Windows 98/2000/XP Operation System |
|||
|
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
|||
|
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
|||
|
Working temperature |
0-45℃ |
|||
|
Relative humidity |
30% - 75% |
|||

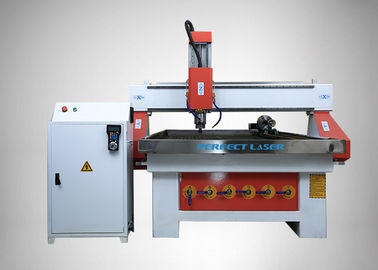

Description
The spindle heads of our Multi-spindle CNC Router can work together, save time and approve the work efficiency. The multifunctional engraving machine body used a thick pipe which is of good strength and is hard to distort. With the turbine worm gear box, the machine can operate stably and you can put two rotators on the platform. The rotators can be removed so the machine can realize both three dimensional engraving and flat surface engraving.
Product Features
1. All of the spindles can work together, save time and approve the work efficiency, while any of them can work alone too.
2. Adopt integral iron casting machine body. Non-deformation configured with international advanced high precision linear rail(AMT or HIWIN),more stable movement ,long lifetime using.
3. Water cooling, high power spindle, low noise, and big cutting force to assure the long time working.
4. Adopted German made double-nut ball crews and imported linear guide rail. The storage of the break point function enables the machine can work continuously in case of power off.
5. Firm structure, no distortion, which make it more precise.
6. Large cutting power not only elaborately carved a jagged, smooth, clear bottom.
7. Gantry moving, the lathe bed is cast wholly, firmly and will not become cut of shape.
8. Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP).
9. More compatible: It is compatible with such CAD/CAM software like Type3/ Artcam/ Castmate/ Proe/ UG/ Artcut, etc.
10. Support semi-automatic oil lubrication system, can maintain easily optional device of Panasonic servo system from Japan.
11. Adopt more advance X-Y-Z Auto-oil-feeding System.
Optional Items
1. Rotary Fixture
2. DSP Remote Controller (for offline working)
3. Dust Collecting System for wood working
4. Vacuum Absorbing Table for wood working
5. Stainless Steel Water Slot for cutting metal (with Cooling System)
6. Servo Motor & Control System
7. Acrylic Polishing Machine
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
