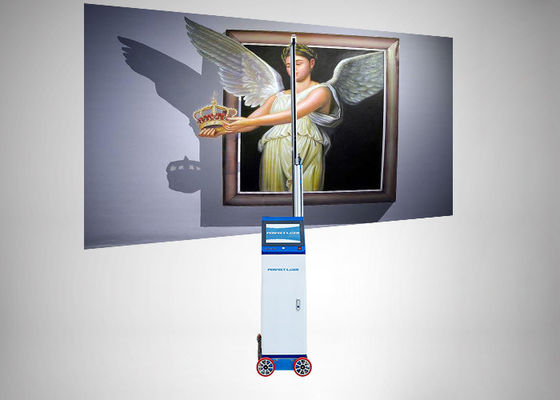

Dual Core CPU Automatic Color Matching Direct To Wall Printer Applied To Wood Metal Tiles
(Model:PE-UV30)
★ Product Introduction:
Perfect Laser has 20 years of experience in wall flower sprinkler industry, with a professional research team. direct to wall printer PE - UV30 on the basis of the previous wall spray machine, using trackless printing, easy to move. The machine uses UV ink, no need to add any additives, just need to import the picture to start printing.
★ Product Features:
★ Application:
Can be applied to non-absorbent materials, such as: glass, ceramic tile, wood, metal, etc., can also be applied to wall materials such as: latex paint wall, white wall, wall clothing, color paint wall and imitation porcelain wall.
It is widely used in home decoration industry, advertising industry, government propaganda, culture and education industry, etc.
★ Technical Parameters:
| Manufacturing State |
PE-UV30 direct to wall printer In Production |
Flash Spray Test | Touch |
| Data transmission method | USB2.0/3.0 | Ink Jet Test | Touch |
| Sensor | Double | Z axis automatic | Have |
| Length*width*height (host) | 40cm*50cm*230cm | Spirit Level | Have |
| The Fastest Painting Speed | 8m2/h | Ultrasonic Sensor | 2pcs |
| Ink Consumption Per Square | 6-10ML | Painted Mode | Two-Way |
| Nozzle Model | Special DX9 | Atlas Type | External U Disk/Hard Disk |
| Number Of Nozzles | One | Automatic tracking | Have |
| Nozzle Guard | Have | Quiet Zone Calibration | Have |
| Head Ink Tank | Can Be Split And Transported Separately | Step Calibration | Have |
| Motherboard Configuration | Dual-core CPU, 1GBDDR Memory | Nozzle Buffer | Have |
| Highest Painting Accuracy | 1200DPI | Spray Distance | 0.5-2.0cm |
| Painting Direction | Vertical | Ink supply method | Automatic ink supply under negative pressure |
| X Axis Guide | 2300mm | Color Processing | Automatic Color Matching |
| Z Axis Guide | 170mm | Painted Medium | All White Walls |
| Display Screen | Comes With 12-inch Control Screen | Integrated Voltage Regulator | Have |
| X Axis Effective Stroke | 2000mm | Laser Positioning | Have |
| Y Axis Effective Stroke | Unlimited | Magnetic Limit | Have |
| Z Axis Effective Stroke | 100mm | UV curing lamp | Have |
| Total Body Weight | 39KG | Nozzle cleaning | One key automatic |
| Total Track Weight | 18.8KG | ||
| Ink Tank Capacity | 400ML | ||
| Certification | Green Environmental Protection Certification,National Standard Testing (GB18582-2001, GBT9756-2001), CE Certification | ||
| Power Supply | AC110V(90-132V)/AC220V(180—264V)AC,47-63HZ | ||
| Power Consumption | No Load 20W, Generally 75W, Up To 250W | ||
| Noise | Standby <20dBA, drawing <50dBA | ||
| Construction Temperature | -10°C - 60°C (14°F - 140°F) 10%-80% Relative Humidity, Non-condensing | ||
| Storage Temperature | -30℃ - 60℃(-22°F - 140°F)10%-80%Relative Humidity, Non-condensing State | ||
| Language | Chinese and English (Customizable) | ||
| System Platform | WindowsXP/Win7/Win8/Win10 | ||
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
