Product Details:
Payment & Shipping Terms:
|
| Laser Coding Standard Working Area: | Laser Marking | Laserr Coding Machine Speed: | 8000mm/s |
|---|---|---|---|
| Laser Head: | Galvenometer Head | CNC Or Not: | Yes |
| Cooling Mode: | Air Cooling | Laser Wavelength: | 10W 30W 60W Optional |
| Laser Maximum Output Power: | 532nm | Repeat Accuracy: | ±0.001mm |
| Certification: | CE | After-Sales Service Provided: | Engineers Service Overseas |
| High Light: | 8000mm/S Fiber Laser Engraver,532nm Fiber Laser Engraver,60W Floor Stand Laser Engraver |
||

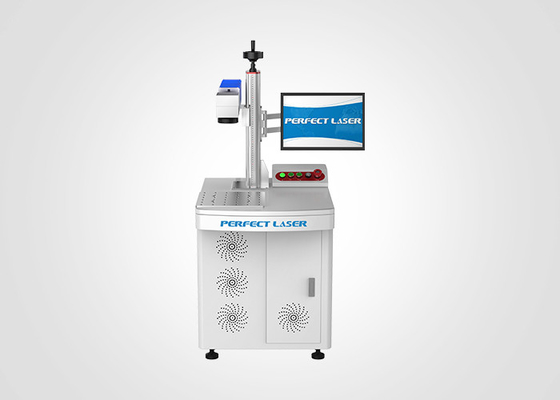

(Model:PEDB-400D)
Introductio
PEDB-400D is a standing-cabinet laser marking machine jointly developed by Perfect Laser’s technical team and technicians at home and abroad.It adopts the principle of human engineering mechanics and the laser imported from Germany, so that the marking effect is better, to provide customers with a better marking experience.
Product Features
1. Imported laser and EMCC control system: German IPG laser is adopted, which ensures stable laser beam and better marking effect;Adopt high performance and high stability control system, the system interface is stable and reliable;
2. Humanized design: Refer to the principle of human engineering mechanics, consider the user's experience, and simplify operation;
3. Fast marking speed: the processing time of the workpiece is greatly shortened, thus increasing the number of orders per unit time;
4. High electro-optical conversion rate, long life, low loss: no consumables, no maintenance, and long life, can meet the 24h continuous stable processing requirements;
Application
| Electronic Components | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
| Apparatus And Meter | Panel signs, precision equipment ,etc. |
| Instrument | Panel signs nameplates, precision equipment ,etc. |
| Hardware Tools | Knives, tools, measuring tool, cutting tool, etc. |
| Automobile Parts | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc. |
| Mechanical Parts | Bearings, gears, standard parts, motors, etc. |
| Daily Necessities | Handicrafts, zipper, key holder, sanitary ware, etc. |
| Jewelry Rings | Jewelry, gold, silver,etc. |
| Food, drinking packing | Plastic packings,etc. |
Technical Data
| Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Standby |
| Computer | Not includes PC | Includes PC | ||
| Laser Source | ||||
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | |||
| Mode of operation | Pulsed | |||
| Polarization: | random | |||
| Nominal average output power | 10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D |
|||
| Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | |||
|
Emission Bandwidth |
<10 nm | |||
| Long-term average power instability | <5% | |||
| Pulse width, (FWHM) | 100 ns | |||
| Laser switching ON time | 180 μsec | |||
| Laser switching OFF time | 180 μsec | |||
| Pulse Repetition Rate* kHz | 20-80 kHz | |||
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ | |||
| Typical beam quality, M2 | <1.8 | |||
| Output fiber delivery length | 3m | |||
| Operating voltage: | 220V | |||
| Max. Power consumption: | 600W | |||
| Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system | ||||
| Scanning Speed: | 0-7000mm/s | |||
| Marking Speed: | 0-5000mm/s | |||
| Marking size: | 110mm×110mm (F-theta 160) | |||
| Spot size: | ≤ 40 micron (F-theta 160) | |||
| Cooling unit: | Air cooled | |||
| Pilot laser: | 650nm diode laser, visible red light for marking guide | |||
| Continuous working time: | ≥16h | |||
| Humidity: | 45～85% (no condensation) | |||
| Operating temperature: | 0~40℃ | |||
| Control units | Laser Mark (English Version) | |||
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
