Product Details:
Payment & Shipping Terms:
|
| Model: | PE-UV-1 Uv Laser Marking Machine | Laser Type/wave Length: | 355nm |
|---|---|---|---|
| Laser Output Power: | 3W/5W | Beam Quality㎡: | <1.1 |
| Marking Speed: | 400characters/s | Repeated Accuracy: | ±0.001mm |
| Working Area: | 110×110mm Or 180×180mm ( Adjustable ) | Machine Power: | 800W |
| Minimum Character: | 0.1mm | Minimum Line Width: | 0.015mm |
| High Light: | 355nm UV Laser Marking Machine,800W UV Laser Marking Machine,400characters/s Surgical Masks Marking Machine |
||

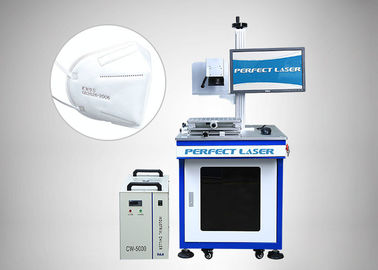

Hot Selling N95, KN95 Surgical Masks Production Line UV Laser Marking Machine
(Model: PE-UV-1)
►Description Of UV Laser Marking Machine
So far, more than 3 million cases of new coronary pneumonia have been diagnosed, and it continues to spread. Protection has become a top priority. Everyone needs tools such as masks and protective masks to protect themselves. Whether considering business opportunities or the company's own sense of social responsibility, more and more companies are producing and producing protective products such as masks.
In addition to strict customs clearance standards for the export of such protective equipment, in the market competition, mask identification is also an important means to distinguish between anti-counterfeiting and product advantages and disadvantages. Common marking processes include chemical etching, ink coding, mechanical stamping and laser marking. Among them, UV Laser Marking Machine with excellent process characteristics is more and more popular with customers.
Perfect Laser has 20 years of experience in the laser industry, and it is very guaranteed in the quality of the mask laser marking machine suitable for medical daily necessities.
►Product Features Of UV Laser Marking Machine
1. Precision marking
face mask marking machine is narrower and the pulse stability is higher, which can shorten the material processing time and achieve the perfect marking effect.
2. User-friendly operation
mask laser marking machine is equipped with a closed cover and a computer with integrated software. The emergency stop function reduces the damage to the operator and the machine.
3. Optional turntable
uv laser marking machine for mask is optional, which greatly reduces the processing time of a single processed part and greatly improves the production efficiency.
4. 24 hours continuous operation
face mask marking machine can run continuously for 24 hours, which can meet the needs of large-scale industrial or offline production.
►Details Of UV Laser Marking Machine
►Application Of UV Laser Marking Machine
Application materials:
widely used in metal, glass, crystal, PCB, plastic, fiber, paper, paint, silicon wafer, LCD, polyamide, wire, plug and other polymer materials.
Application industry:
widely used in automotive and electronics, food and beverage industry, medical technology, jewelry, cosmetics, medical supplies, daily necessities, etc., good performance, clear and stable marking, better than ink marking, no pollution.
►Sample Show Of UV Laser Marking Machine
►Specifications Of UV Laser Marking Machine
| Model | PE-UV-3W/5W | PE-UV-10W |
| Laser type/wave length | 355nm | |
| Laser output power | 3W/5W | 10W |
| Beam quality㎡ | <1.1 | <1.3 |
| Marking speed | 400 characters per second | 500 characters per second |
| Repeated accuracy | ±0.001mm | |
| Working area | 110×110mm or 180×180mm ( adjustable ) | |
| Machine power | 800W | 1200W |
| Power supply | 380V/50-60Hz or 220V/50-60Hz | |
| Minimum character | 0.1mm | |
| Minimum line width | 0.015mm | |
| Life of the laser machine | >100,000 hours | |
| Cooling system | Water Cooling | |
| Control interface | Standard USB | |
| Overall dimensions | 900mm×680mm×1200mm | |
►Optional ltem Of UV Laser Marking Machine
►Packaging & Delivery Of UV Laser Marking Machine
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
►Competitive Advantages Of UV Laser Marking Machine
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
