(Model: PE-F3013 F3015 F2513)
PE-F1000-3015 is a metal sheet fiber laser cutting machine. It is an economical laser cutting complete set of equipment. It is an optical-mechanical-electrical integration product integrated with functional components such as fiber lasers, chillers, fiber cutting heads, cutting machine tools, control systems, and exhaust systems. The whole adopts a fixed workpiece and a gantry mobile structure. The metal sheet fiber laser cutting machine is a two-axis, three-axis controlled NC laser cutting machine, in which the X and Y axes are linked to achieve the plane cutting feed, and the Z axis is floating to track the workpiece surface. The three CNC axes are guided by the pair of rolling guides, and the AC servo motor drives the rack and pinion feed. The servo motor is imported from Japan, and the quality is guaranteed.
1. Mobile gantry structure machine tool, the overall outer envelope structure, can maintain good stability and safety for a long time.
2.AC servo motor drive, fast response, servo motor hardware operating system is imported, good compatibility, strong stability, more convenient maintenance, more powerful cutting function.
3. Gear rack and linear guide drive, high precision.
4. Intelligent CNC system.
5. German advanced fiber laser source and 100,000 hours service life of key components ensure lower maintenance costs.
►Details Of Metal Sheet Fiber Laser Cutting Machine
Application materials: Non-contact cutting of metal plates, especially suitable for stainless steel, iron plates, diamond saw blades and other materials. It has excellent processing effect on various hard and brittle alloys. Laser cutting technology can partially replace punching and wire cutting in the sheet metal industry. Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickled sheet, aluminized zinc sheet, copper and other metal materials.
Application industry: used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing And other manufacturing and processing industries.
| Model | PE-F1000-3015 | PE-F2000-3015 |
| Laser Power | 1000W | 2000W |
| Max. Cutting Thickness | 12 mm | 20 mm |
| Laser Type | Imported Fiber Laser | |
| Laser Technology | Germany Technology | |
| Working area | 3000*1500 mm | |
| X axis Stroke | 3050 mm | |
| Y axis Stroke | 1500 mm | |
| Z axis Stroke | 150 mm | |
| Transmission way | Imported ball screw | |
| Table-driven system | Japanese Panasonic Servo motor & Driver | |
| Focus Method | Dynamic Following and Automatic Adjust Focus | |
| Location precision | ≤±0.05 mm | |
| Re-location precision | ±0.02 mm | |
| Max. moving speed | 100m/min | |
| Laser wavelength | 1070nm | |
| Minimum line width | ≤0.1mm | |
| Supporting Format | PLT, DXF, BMP, AI | |
| Power demand | 380V/50HZ | |
| Worktable max. load | 1000 Kg | |
| Dimension (L*W*H) | 4000mmX3000mmX2000mm | |
| Control Method | offline movement Control | |
| Control software | Perfect Laser Professional Laser Cutting Software | |

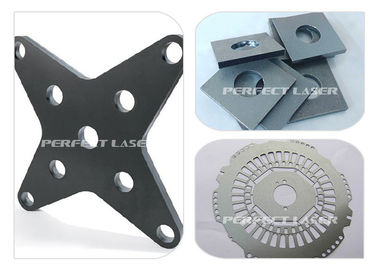

►Sample Show Of Metal Sheet Fiber Laser Cutting Machine
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
