Fast Speed Cnc Marble Engraving Machine Waterproof Design Etching Tool PEM-6090C

Fast Speed Cnc Marble Engraving Machine Waterproof Design Etching Tool PEM-6090C
Fast Speed Cnc Marble Engraving Machine Waterproof Design Etching Tool PEM-6090C Fast Speed Cnc Marble Engraving Machine Waterproof Design Etching Tool PEM-6090C

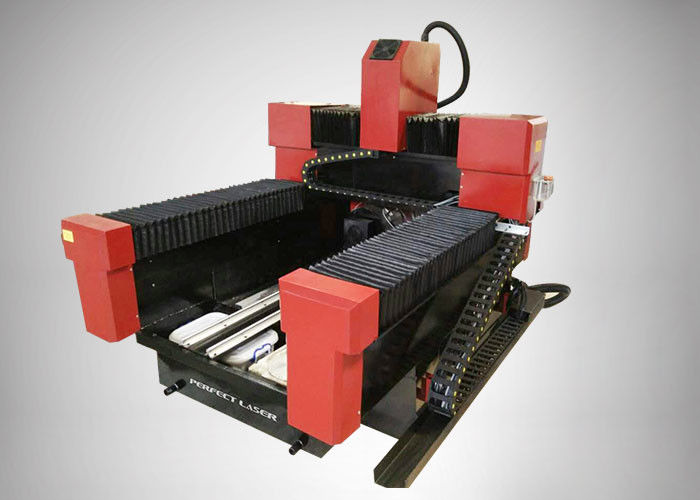

Large Image :  Fast Speed Cnc Marble Engraving Machine Waterproof Design Etching Tool PEM-6090C

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA / TUV
Model Number: PEM-6090C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing
Delivery Time: 10-15 Working Days
Payment Terms: T/T, L/C, Western Union, D/P
Supply Ability: 5000Unit per Year
Detailed Product Description
Model: PEM-6090C Weight: 1600 Kgs
Power: AC220V(380V)/50HZ (optional:AC110V/60HZ ) Main Axle Rotating Speed: 6000-24000 Rpm/min
Working Area: 600*900mm Max.Working Speed: 8000mm/min
Feeding Height: 200mm Re-positioning Accuracy: 0.02mm
Payment: T/T, L/C, PayPal, Western Union Price: Negotiable
High Light:

industrial cnc router

,

cnc router equipment

PEM-6090C Waterproof design Etching Tool cnc marble engraving machine



Product Introduction



This cnc marble engraving machine is cast iron and is tempered and precision machined for 15mm natural marble. The CNC marble engraving machine features a unique waterproof design and long life for transmission components and circuit components for long-term use. The circulatory system and sink design ensure a higher wear resistance of the tool. When a certain amount of power is reached, the breakpoint memory is processed the next day to ensure an accident (broken knife) or the next day. The engraving speed is fast, and the maximum working speed can reach 8000mm per minute. Overall, this is a very safe and efficient stone engraving machine, which is a good choice if needed!



Product Features



1. High-speed machining, power, breakpoint, next day processing, convenient for labor.



2. Waterproof design, high safety, and ensure the safety of internal parts of the machine.



3. The engraving speed is fast, up to 8000mm/min.



4. Wide range of applications, in addition to stone processing, marble, granite, tombstone and other processing, can also be used for processing wood, ABS, PVC, acrylic and other non-metallic materials.



Product Specifications



Model PEM-6090C
Working area 600*900mm
Machine Volume 3200*2020*1250mm
Main axle power rate 2.2/3/4.5/5.5KW(optional)
Main axle rotating speed 6000-24000 rpm/min
Max.Working speed 8000mm/min
Feeding height 200mm
Engraving tools 3.175/4/6/12.7mm
Re-positioning Accuracy 0.02mm
Supported File Format DXF,PLT,G code,MMG,U00,NC,ENG
Power AC220V(380V)/50HZ (optional:AC110V/60HZ )
Weight 1600 kgs



Application



The cnc marble engraving machine’s application range:

Used in marble, jade, ceramic tile, artificial stone, acrylic, glass, copper, aluminum, iron and other non-metallic materials and common metal materials.

The cnc marble engraving machine’s application industry:

Used for engraving and cutting of advertising characters, cutting and engraving of medium density fiberboard, acrylic processing, crafts, signs, nameplates, electronic chassis openings, small cylindrical three-dimensional relief, PVC cutting, etc.



Sample Show

Fast Speed Cnc Marble Engraving Machine Waterproof Design Etching Tool PEM-6090C 0

Packaging & Delivery



1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages



1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
