Product Details:
Payment & Shipping Terms:
|
Spot Range: | 0.1~3mm | Laser Type: | Nd:YAG Pulse Xenon Lamp |
---|---|---|---|
Machine Battery: | 220V±10%/50/60z | Product Name: | Laser Mould Welding Machine |
After-sales Service: | Engineers Service Overseas | Laser Cooling: | Water Cooling |
Monitor: | Microscope( Rotate 360º) | Protective Gas: | 1(argon) |
Dimension: | Main Engine 1250*580*1200mm Chiller 700*500*900mm | Table Capacity: | ≤200KG |
High Light: | laser welding equipment,laser welding machinery |

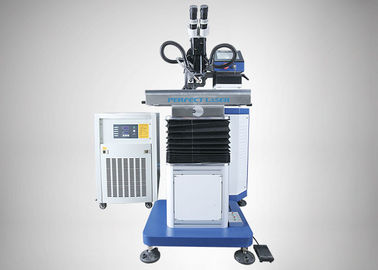

Water Cooling Industrial Laser Mould Welding Machine For Automobiles
(Model:PE-W200M 300M 400M)
Introduction of laser mould welding machine
The Water Cooling Industrial Laser Mould Welding Machine is based on laser high heat energy and focus point of welding technology. It can handle all small parts of
the welding effectively and do the repairing work.It makes up for the traditional
argon arc welding technology in the fine repair welding surface and avoid the head strain and post-processing these two thresholds, greatly save the mould production
cycle.It is equipped with industrial touch screen control system,easy to operate.The welding joints diameter is only 0.2-0.5mm.High positioning accuracy and easy automation.Small heat affected zone, small deformation, fast welding speed, smooth and beautiful weld. No deformation and the material can be etched without any damage. No trachoma,no stomata with smooth welding edge.You can re-use the original mold after repair, which will greatly improve efficiency and reduce cost.
Features of laser mould welding machine
Application of laser mould welding machine
Applicable materials: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness aluminum alloy and other metal materials.
Applicable industry:digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries.
Device Parameters of laser mould welding machine
Type | PE-W200M | PE-W300M | PE-W400M |
Three axis table | X=250mm,Y=180mm | ||
Table capacity | ≤200KG | ≤200KG | ≤200KG |
Machine battery | 220V±10%/50/60z | 380V±10%/50/60Hz | 380V±10%/50/60Hz |
Laser type | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp |
Spot adjusting range | 0.1~3mm | 0.1~3mm | 0.1~3mm |
Peak wavelength | 1064nm | 1064nm | 1064nm |
Pulse width | ≤20ms | ≤20ms | ≤20ms |
Rated output power | 180W | 270W | 360W |
Maximum laser power | 200W | 300W | 400W |
Pulse frequency | ≤50Hz | ≤50Hz | ≤50Hz |
Laser output focal length | 100mm | 100mm | 100mm |
Laser cooling | Water cooling | Water cooling | Water cooling |
Monitor | Microscope( rotate 360º) | Microscope( rotate 360º) | Microscope( rotate 360º) |
Protective gas | 1(argon) | 1 (argon) | 1 (argon) |
Cold water capacity | 2700W | 3500W | 5000W |
Wire diamter | 0.1mm~0.6mm | 0.1mm~0.8mm | 0.1mm~1.0mm |
Dimension |
Main engine |
Main engine |
Main engine |

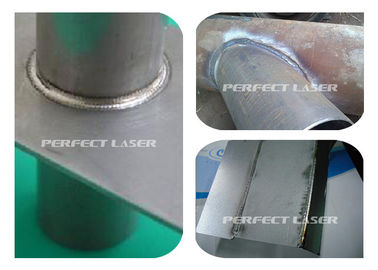

Sample Pictures of laser mould welding machine
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
