Product Details:
Payment & Shipping Terms:
|
| Cutting Speed: | 0-10000mm/min | Cutting Thickness: | 0-25mm Acrylic (others Determined By Materials) |
|---|---|---|---|
| Repeat Location Accuracy: | +/-0.0125mm | Driving Mode: | DC0.8A 24V Stepper Motor |
| Position System: | Red Dot | Cooling Mode: | Circulation Water Cooling And Protection System |
| Auxiliary Devices: | Exhaust Fan And Exhaust Pipe | Cutting Platform: | Professional Thickening Strip Or Honeycomb Work Table |
| Power Control Mode: | Laser Energy Combining Movement Control System | Operating Humidity: | 5-95% |
| Highlight: | co2 laser cutting system,co2 laser engraving cutting machine |
||
100w Double Head Cnc Industrial Laser Cutter And Engraver For Leather/ Rubber
(Model:PEDK-140100II)
Introduction of Laser Cutter And Engraver
The laser cutter and engraver is a high-selling and highly acclaimed product. It is equipped with dual laser cutting heads, professional work table, strip table or honeycomb table for the purpose of meeting various customers’ needs. The laser cutter and engraver can cut and engrave materials of various complex shapes. A wonderful combination of cutting and engraving functions, low cost and faster speed. The laser cutter and engraver is easy to operate with LCD screen control, U disk import file, user-friendly interface and CNC control system. The cooling mode uses the circulation water cooling and protection system, prolongs the life of the laser tube, and the laser power is more stable.
Features of Laser Cutter And Engraver
1.The laser cutter and engraver has Taiwan imported "HIWAN" linear guide, which has fast speed, low noise, high precision and long service life.
2.The laser cutter and engraver is equipped with thicken and visible acrylic observation window to protect it from dust,and keep safety.
3.The laser cutter and engraver adopts the front to back passing-through design which can open the device and put in larger materials.
4.Two worktables are available for choosing: the strip table for thick and heavy materials; the honeycomb table for soft and thin materials,support Customization.
5.The laser cutter and engraver uses the red light pointer can realize the exact position of laser beam.
6. The laser cutter and engraver uses stainless steel rod, rustproof and durable and the omnidirectional wheel for easy movement or fixed position.
7. With USB interface, 128M large memory, the laser cutter and engraver can store a variety of software.
Application Range of Laser Cutter And Engraver
The laser cutter and engraver is suitable for acrylic, wood, fabric, cloth, leather, rubber sheet, PVC board, paper and other non-metallic materials with complex shapes.
Specifications of Laser Cutter And Engraver
| Model | PEDK-140100(II) Double Heads laser engraver and cutter |
| Working Area | 1400x1000mm |
| Laser Power | 100W(Standard) 60W/80W/130W/150W/180W(Optional) |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-10000mm/min |
| Cutting thickness | 0-25mm Acrylic (others determined by materials) |
| Repeat Location Accuracy | +/-0.0125mm |
| Driving mode: | stepper motor |
| Position system: | Red dot |
| Interface: | USB |
| Voltage | AC220V/50HZ or 110V/60HZ or depend on customer |
| Machine Power | ≤1000W |
| Controlling System | CNC Professional Control System |
| Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
| Cooling Mode | Circulation Water Cooling and Protection System |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Power Control Mode | Laser Energy Combining Movement Control System |
| Software | Professional Laser Engraving & Cutting Software(Reader Software) |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Packing: | Standard wooden box |
| Operation: | Detailed Video to teach customer how to operate the machine |
| Packing Size | 2.2*1.8*1.2m , 500 kgs |

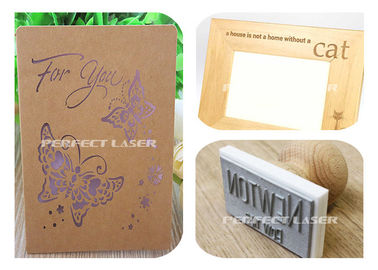

Sample Show of Laser Cutter And Engraver
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
