Product Details:
Payment & Shipping Terms:
|
| Pulse Width: | 0.3-20ms | Welding Frequency: | 0.5-40HZ |
|---|---|---|---|
| Adjustable Facular Size: | 0.2-2mm | Mobile Level: | 200mm |
| 2-linertary: | 200mm | Standard Worktable: | 800*1000mm |
| Laser Lamp: | Single Lamp/Double Lamp | Laser Cavity: | UK Imported “Morgen” Brand |
| Power Consumed: | ≤9KW | ||
| Highlight: | laser welding equipment,laser welding machinery |
||

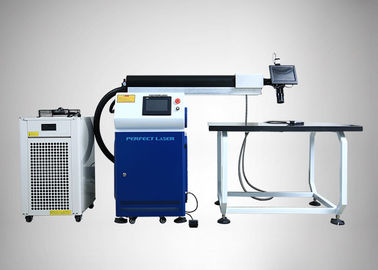

High Speed 300w 500w Laser Spot Welding Machine With Double Welding Path For Aluminum
(Model:PE-W300II 500II)
Product Introduction of Laser Spot Welding Machine
The 300w 500w laser spot welding machine is equipped with double laser welding path with 5m Length Fiber Laser Cable, which brings large convenience for your job.And the laser head can rotate 360 degrees,which is more convenient for positioning and welding for special shaped objects. Adopts China famous brand CCD camera,the CCD screen and red dot pointer double positioning,LCD screen and red pointer CCD camera can photo-shot the welding details and transmit the signal to LCD screen. The welding effect is more clear and intuitive.The exquisite marble work table can not rust,it can be easily welded with the metal material.
Features of Laser Spot Welding Machine
1.The laser spot welding machine adopts 1HP water chiller which can cool the machine and make the machine work in good condition.Operators can adjust the temperature parameters on the chiller panel to extend the service life of the laser spot welding machine.
2.The LCD colorful screen,pulse width, frequency and speed can be adjusted on the screen and no need of PC. You can save 10 sets of parameters in need.
3.There is no raised spot after welding. No requirement of polishing process. Saving time and labor. The appearance is beautiful and tight.
4.The laser spot welding machine uses the USA imported Xenon lamps,8 million times’ lighting,imported material,12 months lifetime.
5.The laser spot welding machine adopted specially designed long focal distance lens. With focus distance of 200mm, it can meet the demand for ultra-high font welding,imported material,6-12months lifetime.
6.The electrical controlling system,controlling board and cable connection are integrated to avoid confusion.
Application of Laser Spot Welding Machine
Specifications of Laser Spot Welding Machine
| Laser Spot Welding Machine | ||
| Model | PE-W300II | PE-W500II |
| Max laser power | 300w | 500w |
| Laser wave-length | 1064nm Double Welding Path | |
| Single power energy | 100J | 120J |
| Welding Depth for Carbon Steel/ Stainless Steel / Galvanized Steel / Golden-Plate Steel | 0.1-1mm | 0.1-2mm |
| Welding Depth for Brass,Aluminum Alloy | 0.1-1mm | 0.1-2mm |
| Pulse width | 0.3-20ms | |
| Welding frequency | 0.5-40HZ | |
| Adjustable facular size | 0.2-2mm | |
| Power consumed | ≤9KW | |
| Laser Cavity | UK imported “Morgen” Brand | |
| Laser Lamp | Single lamp | Double lamp |
| Electrical source | 220V/1 phase /50Hz/40A | 380V/3 phase/50 hz |
| Standard worktable | 800*1000mm | |
| Positioning | CCD Screen + Red Dot Pointer | |
| 2-linertary | 200mm | |
| Mobile level | 200mm | |
Sample Show of Laser Spot Welding Machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
