This LCD screen handheld pneumatic marking machine independently researched by Schwab Laser can control the printing process in a whole process, and print the marked content intuitively and accurately. The printed content can be arbitrarily arranged; the operation and maintenance are simple and convenient, the equipment runs safely and reliably, and has powerful database capability. No need to worry about the collection of production data; highly compatible with various graphic format files, no need to worry about printing your trademark; WYSIWYG editing mode, almost all operations can be done with the mouse; no pollution, no consumables No wearing parts, no special requirements for the working environment, low cost of use.

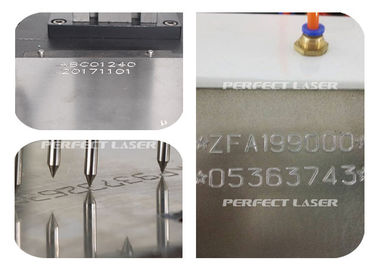

The pneumatic marking machine has a wide printing range, such as nameplate, LOGO, production date, company name, telephone number, product number, etc., which can be printed by the marking machine. These include industrial bearings, watches and clocks, electronic and communications products, aerospace equipment, various automotive parts, home appliances, hardware tools, molds and other fields of graphics and text marking, as well as high-volume production line operations.
①The high-speed single-chip microcomputer is the control core of the handheld marking machine control system, and the blue liquid crystal display.
②Pneumatic portable marking machine can be operated completely offline, friendly man-machine interface, easy to learn and use, easy to operate.
③It can automatically print serial number, VIN code, etc.
④The printed graphics and the like are solidified in the system and cannot be changed at will.
⑤Pneumatic portable marking machine uses pneumatic printing, as long as it has power and gas source to work.
⑥The needle is made of hard alloy material, and the hardness of the printing material can reach HRC93.
⑦Anti-interference, strong radiation resistance, and adapt to the harsh working environment.
⑧The failure rate is extremely low, the maintenance amount is small, the power consumption is low, the cost is low, and the price is low.
| Machine Name | Portable Dot Peen Marking Machine | |
| Model | PEQD-030 | PEQD-030E |
| Machine Type | Portable | LCD Control + Portable |
| Standard Marking Area | 135×20mm | |
| Optional Marking Area | 90×20mm, 125×20mm 150×100mm, 200×100mm |
|
| Marking Depth | 0.01~2mm | |
| Marking Speed | ≤50mm/second (3-4 number/second for 3mm height letters) |
|
| Lifting Range | 0-300 mm | |
| Marking Accuracy | 0.01 mm | |
| Pin Hardness | HRC 92 | |
| Power Supply | 220V±10％, 50HZ | |
| Air Pressure | 0.2-0.6 Mpa | |
| Machine Power | ≤400 W | |
| Working Environment | -5～40 ℃ | |
| Making Head Weight | 5 Kgs (Portable) | |
| Whole Machine Weight | 5 Kgs | 30 kgs |
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
