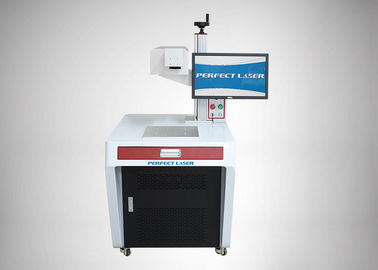

3D UV Laser Marking Equipment , 355nm Automatic Marking Machine For Ceramics Plastic

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  3D UV Laser Marking Equipment , 355nm Automatic Marking Machine For Ceramics Plastic

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA / SGS / TUV
Model Number: PE-UV-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-10 Working Days
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 3000 Unit per Month
Detailed Product Description
Brand: Perfect Laesr Power Demand: 100-240v Single Phase,50-60hz
Model: PE-UV-3D Laser Wavelength: 335nm
Pulse Width: <25ns@30khz Minimum Character: 0.2mm
Keywords: Fiber Laser Marking ,machine After-Sales Service Provided: Engineers Service Overseas
Certification: CE / ISO / FDA SGS / TUV Payment: T/T, L/C, PayPal, Western Union
High Light:

laser etching equipment

,

laser marking equipment

Three-dimensional 355nm 3D UV Laser Marking Machine For Ceramics Plastic







Application Field

It is suitable for processing materials with large thermal amplitude response. It can be matched with production line, automatic loading and unloading, automatic feeding and discharging, mainly used for ultra-fine marking and engraving. It is especially suitable for high-speed division of food, medical packaging and glass materials. Silicon wafers for applications such as complex graphics cutting.









Product Introduction

The 3D dynamic uv laser marking machine is one of the series of laser marking machines, but it is developed with 355nm UV laser. The uv laser marking machine uses intracavity frequency doubling technology compared with infrared laser. The 355 UV focusing spot is very small and can greatly reduce the mechanical deformation of materials and have little influence on processing heat. Because the uv laser marking machine is mainly used for ultra-fine marking and engraving, it is especially suitable for high-speed division of food, medical packaging materials, micropores, glass materials, and complex graphic cutting of silicon wafers.



The uv laser marking machine adopts imported core components and is equipped with high-speed and high-precision 3D galvanometer. Combined with the 3D special software and control system independently developed by our company, it can perfectly realize the fine processing of any curved surface workpiece without the focus phenomenon; The uv laser marker can also be used for deep engraving. The focus tracking in real time makes the processing efficiency and quality better than the traditional 2D marking machine. Realize the full realization of 3D marking function, leading laser processing into a new era. The three-dimensional UV laser machine adopts imported high-quality ultraviolet laser source. The 355nm uv light focuses on the spot, and the processing heat affected zone is very small. It is suitable for processing materials with large thermal radiation response. The uv laser marking machine is mainly used for superfine marking and special material marking,carving and cutting. Widely used in the high-end market of ultra-fine laser processing.







Product Features

1. The uv laser marking machine has stable performance, small volume, low power consumption, high electro-optical conversion efficiency and long service life;

2. The laser spot output is very small, and the light mode is good, which is suitable for occasional markings such as fine graphics;

3. The laser beam quality is good, the output laser stability is high, the marking effect is easy to debug;

4. The uv laser marking machine has high average power and high repetition frequency, marking speed is faster;

5. The uv laser marking machine adopts marble working platform, which has good earthquake resistance and stress resistance, good flatness and high stability;

6. The product subverts the traditional 2D marking mode, achieving a variety of 3D marking modes such as bevel, step, cylinder, cone, spherical, and stretched surface;

7. The uv laser marking machine can achieve super large center angle marking, on the cylinder can hit the 117 ° center angle position..

8. On the marking workpiece, the target marking pattern is perfectly presented to avoid deformation such as elongation and tilt. Let the engraved pattern be closer to the original form.

9. Let the marking boundary no longer be "ignored"! The marking effect of each position on the workpiece is uniform and consistent;

10. 355nm output wavelength reduces the thermal impact on the workpiece, the heat affected area is very small, there is no thermal effect, the material is not deformed and not burnt;

11. The uv laser marking machine adopts the upper and lower sliding door closed processing in the design, and the uv laser marker uses the high-quality special filter to protect the plexiglass to make a special observation window to create the ultimate protective performance of the whole machine;

12. The uv laser marking machine can be equipped with automatic lifting, rotating and other functions.









Technical Data



Model PE-UV-3D
Laser wavelength 335nm
Minimum line width 0.015mm
Minimum character 0.2mm
Laser output power 3w/5w/10w@30khz
Spot quality(㎡) <1.2
Spot diameter 1.0mm(+/-0.1)
Pulse repetition frequency 10-120khz
Pulse width <25ns@30khz
Power demand 100-240v single phase,50-60hz









Sample Show



3D UV Laser Marking Equipment , 355nm Automatic Marking Machine For Ceramics Plastic 0









Packaging & Delivery



1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.








Competitive Advantages



1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
