Product Details:
Payment & Shipping Terms:
|
| Brand: | Perfect Laser | Laser Type: | Hermetic And Detached Co2 Laser Tube |
|---|---|---|---|
| Cutting Platform: | Professional Thickening Strip Or Honeycomb Work Table | Repeat Location Accuracy: | ± 0.0125mm |
| Certification: | CE / ISO / SGS / TUV | Power Controlling Mode: | Laser Energy Combining Movement Control System |
| After-sales Service Provided: | Engineers Service Overseas | Warranty: | 1 Year |
| Voltage: | 220V(±10%) 50Hz | Origin Of Place: | China |
| Highlight: | co2 laser cutter,co2 laser cutting system |
||

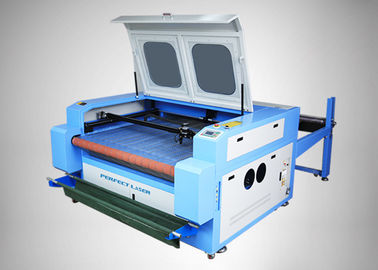

60000mm/Min Paper Acrylic Wood Textile Auto Feeding CO2 Laser Cutting Equipment With High - Speed Stepping Drive
(Model:PEDK-13090A)
►Product Introduction
Perfect Laser, the first domestic manufacturer of automatic laser carving machine. PEDK-13090A auto feeding laser carving machine is developed by Perfect Laser for Co2 laser cutting and engraving of long-processed workpieces such as fabrics, leathers and carpets. Equipped with an automatic reeling system, the entire fabric can be processed at one time, eliminating the need for manual intervention in the middle and saving time.
►Product Features
1. The auto feeding Co2 laser cutting machine is equipped with an automatic coiling system, which can be used to process and complete the entire cloth. It is especially suitable for processing particularly long workpieces such as cloth, leather, and blankets.
2. The automatic laser cutting machine for fabric is equipped with a thick crawler type workbench to ensure that the processing material is smoothly pushed during the processing to ensure the smooth movement of the processing material and no manual adjustment is required.
3. The laser fabric cutting machine adopts imported high-precision linear guide system and professional lenses to ensure the quality of the optical path, ban on long-term durability, dust-proof lubrication, improve the quality of engraving, and extend the service life of the laser carving machine.
4. Perfect Laser's independent research and development control systems of the laser carving machine, special for cloth, leather, blanket cutting sculpture design, with high compatibility, support for any computer operating system, you can set a variety of parameters.
5. High-speed stepping drive, the laser intensity output power of the laser cutting machine for fabric is controlled by the analog quantity, the error is small, the repetition precision of 0.0125mm, laser carving machine can perfectly engrave the 1X1 millimeter English alphabet.
1.Applicable materials
Co2 laser cutting machine is widely applied in plexiglass, MDF, crystal, PVC plastic, paper, acrylic, wood, textile, fabrics, fabrics, leather, EVA materials, bamboo, sealing strips, rubber sheets, marble, granite, ceramics, etc.
2.Applicable industries
Co2 laser cutting machine is widely applied in advertising, crafts, machinery, automobiles, electronics, toys, and in the trade mark, embroidery, clothing and other industries.
►Samples
►Technical Data
| Model | PEDK-13090A | PEDK-160100A | PEDK-130180A | PEDK-130250A | PEDK-160260A |
| Working Area | 1300×900mm | 1600×1000mm | 1300×1800mm | 1300×2500mm | 1600×2600mm |
| Laser Power | 60W / 80W / 100W / 120W / 150W | ||||
| Laser Type | Hermetic and Detached Co2 Laser Tube | ||||
| Engraving Speed | 1-60000mm/min | ||||
| Cutting Speed | 1-10000mm/min | ||||
| Repeat Location Accuracy | ± 0.0125mm | ||||
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling | ||||
| Voltage | 220V(±10%) 50Hz | ||||
| Cooling Mode | Water Cooling and Protect System | ||||
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table | ||||
| Controlling Mode | CNC Professional Control System | ||||
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT | ||||
| Power Controlling Mode | Laser Energy Combining Movement Control System | ||||
| Control Software | Original Perfect Laser Engraving & Cutting Software | ||||
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
