1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon

1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon

1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon
1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon
1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon
1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon
1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon
1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
4-6 Weeks
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Model Number:
PE-20W/50W (II)
Certification:
CE / ISO
Product Name:
PE-20W/50W (II) Fiber Laser Scribing Cutting Machine For Solor Cell Polycrystalline Silicon
Model:
PE-20W/50W (II)
Brand:
Perfect Laser
Origin:
China
Laser Wavelength:
1064nm
Laser Power:
20W
Scribing Line Width:
50um
Scribing Speed:
240mm/s
Scribing Precision:
±10um
High Light:
silicon wafer cutting machine , laser scribe machine
Product Description

Laser Scribing Machine PE-20W/50W (II) Fiber Laser Scribing Cutting Machine for Solor Cell Polycrystalline Silicon





Product Introduction

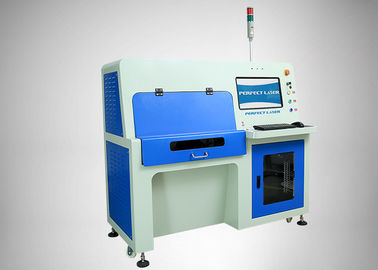

Perfect Laser launched the latest Full-enclosed Type Fiber laser scribe machine with Dust-proof PE-20W/50W (II), the biggest difference between the first generation is that this laser scribe machine is fully enclosed design, machine with dust cover, can avoid environmental pollution, to prevent the operator's vision damage. High output power, high precision scribing, fast speed and could cut curve and straight line graph. Adopting fiber laser as work light source, the two-dimensional work table of the laser scribe machine is controlled by computer, and could do kinds of movement according to what graphics be input in. Mainly used for germanium and silicon,gallium arsenide,metal and other semiconductor material substrate cutting and scribing , machinable aluminum foil,silicon, solar panels, ceramic , etc., the workpiece is fine and beautiful with smooth cutting edges.



1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon 0

Product Features



1.This solar cell laser scribing machine is fully enclosed design, with dust cover, it can avoid environmental pollution, to prevent the operator's vision damage.

2.Software upgrade: the solar cell laser scribing machine support the arc interpolation,circular arc cutting more smoothly.

3.The wafer scribing machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering.

4.Refactoring workbench processing part, open-type workbench processing area, up-down material more convenient. Removed spare parts from the workbench tablet, higher precision and not easy to deformation.

5. Improvement the screw parts of solar cell laser scribing machine: screw lead increased, so as to expedite the processing speed, guarantee machining accuracy.

6. Direct plug-in light path design of the solar cell cutting machine, higher machining precision, better effect .

7.Serve motor modification: run more smoothly, smaller cutting noise,more humanized design;

8.Authoritarian flat dust removal device, The processing effect of the solar cell cutting machine is better.

9.Improved the laser signal control section of the solar cell cutting machine, software runs more stable and fast.



1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon 11064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon 21064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon 3







Application



This laser scribe machine is widely used in solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).





Advantages



1.The core parts adopt imported brand;

2.Fiber Laser has stronger adaptability to the environment;

3.Better beam quality(basic modeTEM000),thinner kerf width, more smooth edges;

4.Higher conversion efficiency, lower running cost, smaller equipment volume (air cooling);

5.The laser pulse width are more narrow, higher peak power, faster scribing speed;

6.[Battery Cell automatic adsorption ,don’t need pedal;]

7.For a long time continuous operation without maintenance, no consumable parts replacement;

8.Software upgrade to version 5.0,parameters of concentrated control, software configurations save;

9.Touch screen operation, serve motor driving(optional).





Technical Parameter



Model specification

PE-20W/50W II silicon wafer cutting machine



Laser wavelength 1064nm
Laser power 20W
Scribing line width 50um
Scribing speed 240mm/s
Scribing precision ±10um
Workbench wide 200×200mm
Temperature control precision 0.5℃
Working power supply 220V/50Hhz/1.5KVA
Workbench Cell automatic adsorption, dust removal
Cooling way Water cooling Air cooling




Samples



1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon 4



Packaging & Delivery



1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



1064nm Wavelength Laser Scribing Machine For Solor Cell Polycrystalline Silicon 5





Competitive Advantages



1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
