Product Details:
Payment & Shipping Terms:
|

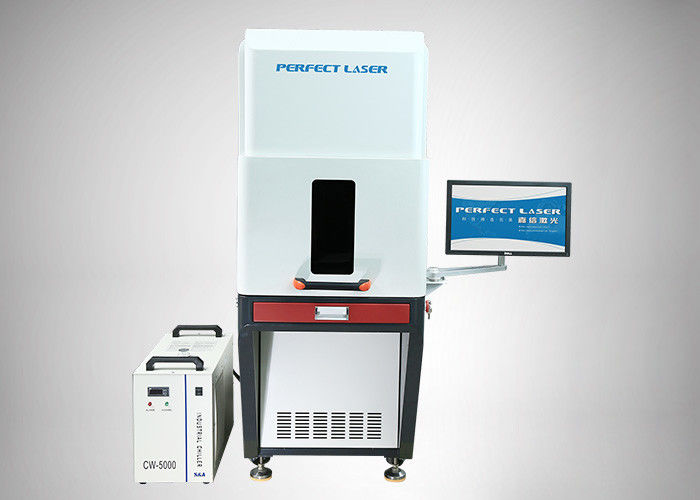

| Product Name: | PE-UV-3W 5W 7W 10W UV Marking With New Enclosed Cover | Model: | PE-UV-3W 5W 7W 10W |
|---|---|---|---|
| Laser Type: | UV Laser | Certification: | CE / ISO / FDA / SGS / TUV |
| Origin: | China | Cooling System: | Diode Cooling / Air Cooling |
| Warranty: | 1 Year | After-Sales Service Provided: | Engineers Overseas |
| High Light: | fiber laser marking machine,laser etching equipment |
||
UV laser marking machine takes 355nm pumped UV laser device as the light source and takes advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.
The metal absorb UV higher than infrared and therefore more suitable for UV marker marking on metal and glass materials compared with infrared pump machine.
Narrower pulse width of UV laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal.
With smaller heat affected area and more beautiful marking effect, our products uv laser marking machine can meet customer’s demand of higher marking requirements.
1. Our laser marking machine has smaller laser spot output, better optical mode, better marking effect and finer marking line. Ideal for fine graphics and text markup;
2. We have full air-cooled UV laser technology with high control precision and good laser stability. Our machines can work continuously for 24 hours at room temperature;
3. UV laser engraving machine is widely used because UV laser can be absorbed by most materials;
4. Stable performance, small size and low power consumption;
5. UV laser engraving machine fully enclosed laser cavity design, dustproof, long service life, low failure rate;
6. We can customize various non-standard models and automation engineering equipment according to the different needs of customers.
Application
1. UV laser is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
2. UV laser is widely used in automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
3. UV laser is widely used in pharmaceutical, food, beverage and cosmetics industry.
4.UV laser is widely used in glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
5.UV laser can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc.,
Technical Date
| Model | PEDB-UV-1W/3W/5W | PEDB-UV-7W/10W | |
| Laser type/wave length | 355nm | ||
| Laser output power | 1W/3W/5W | 7W/10W | |
| Beam quality㎡ | <1.1 | <1.3 | |
| Marking speed | 400 characters per second | 500 characters per second | |
| Repeated accuracy | ±0.001mm | ||
| Working area | 110×110mm or 180×180mm ( adjustable ) | ||
| Machine power | 800W | 1200W | |
| Power supply | 380V/50-60Hz or 220V/50-60Hz | ||
| Minimum character | 0.1mm | ||
| Minimum line width | 0.015mm | ||
| Life of the laser machine | ﹥100,000 hours | ||
| Cooling system | Diode Cooling / Air Cooling | ||
| Control interface | Standard USB | ||
| Overall dimensions | 900mm×680mm×1200mm | ||
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
