| Product Name: | CO2 Laser Engraving Machine CNC Professional Control System Double Heads | Brand: | Perfect Laser |
|---|---|---|---|
| Model: | PEDK-140100II | Certification: | CE / ISO |
| Origin: | China | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Service Overseas | Cooling Mode: | Circulation Water Cooling And Protection System |
| Operating Temperature: | 0-45C | Operating Humidity: | 5-95% |
| High Light: | co2 laser cutting system,co2 laser engraving cutting machine |
||

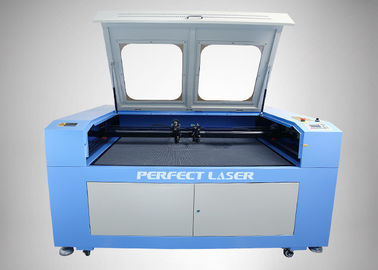

CO2 Laser Engraving Machine CNC Professional Control System Double Heads
(Model:PEDK-140100II)
Description
Perfect Laser is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.The laser engraving and cutting machine PEDK-140100II is the most popular model and has been well received by customers. The machine's working format is 1400 × 1000mm, compact cellular platform for easy storage of materials.
Product Features
1. Double laser cutting head: Two cutting heads make cutting or engraving faster and improve work efficiency.
2. Laser tube: two independent laser tubes.
3. Professional work platform:
1) Suitable for heavy and thick materials such as wood, MDF, linen, etc.;
2) a honeycomb table for soft tissue or the like;
3) Designed according to your different engraving or cutting needs.
4. The overall body is sturdy.
5. Front and rear communication design: Open the machine to put large pieces of material.
6. Advanced LCD control + USB offline + 128m large memory: Advanced LCD control, can import any file through U disk, setting parameters in LCD screen is simple and convenient.
7. With 128M of large memory, you can store a variety of software, such as AutoCAD, CorelDraw, Photoshop and so on.
8. Observation window: made of thickened visible acrylic material with high security protection. When the operator opens the cover, the work will stop immediately, ensuring the safety of the operator and not being damaged by laser processing.
9. Red light indicator: Since the laser is invisible, the red pointer can achieve the precise position of the laser beam.
10. Power switch: With “overcurrent protection” function, it is safer to use.
11. Pull rod: rust-proof stainless steel material.
Application
Our CO2 laser engraving and cutting machine is suitable for a variety of materials, such as leather / wood / paper / glass / acrylic, etc., can be cut or engraved at one time, greatly improving work efficiency. It is widely used in the cutting and engraving of complex shapes of other kinds of non-metallic materials such as acrylic, wood, fabric, cloth, leather, rubber sheet, PVC board, paper.
Specifications
| Model | PEDK-140100(II) Double Heads laser engraver and cutter |
| Working Area | 1400x1000mm |
| Laser Power | 100W(Standard) 60W/80W/130W/150W/180W(Optional) |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-10000mm/min |
| Cutting thickness | 0-25mm Acrylic (others determined by materials) |
| Repeat Location Accuracy | +/-0.0125mm |
| Driving mode: | stepper motor |
| Position system: | Red dot |
| Interface: | USB |
| Voltage | AC220V/50HZ or 110V/60HZ or depend on customer |
| Machine Power | ≤1000W |
| Controlling System | CNC Professional Control System |
| Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
| Cooling Mode | Circulation Water Cooling and Protection System |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Power Control Mode | Laser Energy Combining Movement Control System |
| Software | Professional Laser Engraving & Cutting Software(Reader Software) |
| Operating temperature | 0-45C |
| Operating humidity | 5-95% |
| Packing: | Standard wooden box |
| Operation: | Detailed Video to teach customer how to operate the machine |
| Packing Size | 2.2*1.8*1.2m , 500 kgs |
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
