100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System

100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System

100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System
100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System
100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System
100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
7-15 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Model Number:
PEDK-160260
Certification:
CE / ISO / SGS / TUV
Product Name:
Flat Bed Laser Cutting Machine
Laser Power:
60W / 80W / 100W / 120W / 150W
Laser Type:
Hermetic And Detached Co2 Laser Tube
Engraving Speed:
1-60000mm/min
Cutting Speed:
1-10000mm/min
Repeat Location Accuracy:
± 0.0125mm
Brand:
Perfect Laser
Warranty:
1 Year
After-Sale Service:
Engineers Abroad
High Light:
co2 laser cutter , co2 laser cutting system
Product Description

CO2 Laser Cutting Machine Flat Bed Laser Cutting Machine CNC Professional Control System



(Model:PEDK-160260)



Specifications



Model

PEDK-130180

PEDK-130250

PEDK-160260

Working Area

1300×1800mm

1300×2500mm

1600×2600mm

Laser Power

60W / 80W / 100W / 120W / 150W

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

1-60000mm/min

Cutting Speed

1-10000mm/min

Repeat Location Accuracy

± 0.0125mm

Laser Power Controlling

1-100% Manual Adjustment and Software Controlling

Voltage

220V(±10%) 50Hz

Cooling Mode

Water Cooling and Protect System

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Controlling Mode

CNC Professional Control System

Support Graphics Formats

BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Compatible HPG Order To Support DXF, WMF, BMP, DXT

Power Controlling Mode

Laser Energy Combining Movement Control System

Control Software

Original Perfect Laser Engraving & Cutting Software



Product Features



1. Adopt fully automatic stainless steel caterpillar platform and wide range, which can meet the requirements of large face cutting, clothing carving and other fields.

2. Fast speed, high precision and time saving. With the automatic feeding device, the production efficiency is greatly improved.

3. Advanced LCD touch screen + USB port + DSP offline control. Not only can you work without a computer, but you can also connect to USB devices like USB drives.

4. Adopt imported high-precision linear guide rail and professional optical system for dustproof lubrication. It improves the quality of engraving and lengthens the service life of the machine.

5. Professional honeycomb or strip worktable to meet the needs of diversified laser processing;

6. The water cooling system with alarm protection is equipped with CW-3000 chiller. The temperature display can avoid excessive combustion and protect water circulation from power failure.

7. Equipped with luxury consumables, imported focusing mirror, mirror, China's best quality laser tube, ruichi laser tube and rf metal tube for your choice, high efficiency and stability.

8. High speed step subdivision drive control, digital timing, analog quantum control laser power, small error, high repeatability, perfect carving 1 x 1mm small English characters.

9.Red light indicator: accurate position can also be achieved without laser.


Description



Perfect Laser is a modern technology enterprise integrating scientific research, design, production, sales, maintenance as one of the. By virtue of the laser equipment in the field of professional and mature technology, production and supply of eight class more than 100 laser equipment, products sold throughout the country and exported to Europe, the United States, Canada, Latin America, Russia, India, the Middle East and Southeast Asia and other countries.
Flat Bed Laser Engraving Machine is a multi-function laser process device. It combines three functions: drawing, carving and cutting. Adopt fully automatic stainless steel caterpillar platform. This machine is applicable to a wide range of applications, it can meet the needs of large face cutting, clothing carving and other fields. It not only has the function of all large engraver, but also has perfect improvement in design, function and working area.



Application


Available Materials:

Widely used in advertising, clothing and wood materials, such as acrylic engraving and cutting, engraving and cutting of plastic PVC plate engraving and cutting, rubber plate engraving, carving seals, organic glass sculpture, organic glass sculpture, marble, granite carving, carving, carving, EVA material paper engraving and cutting; Leather carving, textile carving, fabric carving, cloth carving, shoe carving, cowboy carving, carpet carving, toy cutting, wool cutting, denim carving and cutting; Wood carving and cutting, MDF carving, plywood cutting.


Application Industry:


Garment and leather, embroidery, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, decoration and upholster industry.


Product Advantage


Items

Perfect Laser

Thickness of Body Shell

We adopt thicker body shell and the thickness reaches 3mm, which
is more safe and distortion prevention for 5-10 years.

Working Platform

We adopts the US-imported working platform made of aluminum alloy, which is glossy,
load-bearing, and not easy to deform.

Laser Tube

The lifespan is 10000 hours. Every laser tube must pass the professional
 inspection just before delivery. Light spot is more exquisite and precise.

Laser Parts

Our laser parts are manufactured through die stamping technology and on-line
lamination process,
which are high-precision.

Protection Function

Our laser engraving and cutting machine can turn off the laser source
 automatically
when the protection cover is open, which make the operation safer and
 harmless.

Water-cooling Machine

Our machines are equipped with the most advanced CW-5000 and
CW5200 watercooling machine with good cooling effect, low noise and low
 power consumption.

Unique Light-adjusting

Focus Length Adjusting Parts:
Easy to find the center of the lens and find the right focus distance.

Special Scale Design

Scale is engraved at the edge of our working platform. It will be more
 convenient for operators to check the position of material and improve the accuracy
of engraving or cutting so as not to waste materials.



Optional Item:


1) Rolling and Automatic Feeding System:


Realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.


2) Imported Ball Screw Rod:


High speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.

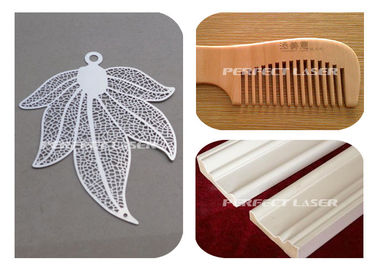

Sample Show


100W Flat Bed CO2 Laser Cutting Machine With Water Cooling And Protect System 0

Packaging & Delivery


1. Prompt deliver at the very day.


2. Sophisticated and professional logistic agent.


3. Well-trained and disciplined packing team.


4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.


2. 100% custom pass guaranteed.


3. Good after-sale service.


4. Flexible and Untraceable payment terms.


5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
