Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Laser Cutting Machine For Round Metal Pipe And Sheet Cutting | Minimum Cutting Line Width: | 0.1mm |
|---|---|---|---|
| Model: | PE-F3015B 500W(800W1000W2000W) | Maximum Run Speed: | 90m/min |
| Laser Wavelength: | 1080 Nm | Rated Output Power: | 50--2000W |
| X, Y-axis Positioning Accuracy: | ≤±0.01mm | Repeated Positioning Accuracy Of The Table: | ≤±0.01mm |
| The Maximum Load Of The Workbench: | 800KG | Effective Processing Format: | 1500*3000mm |
| Pipe Type: | Round,oval,special-shaped Pipe | Pipe Length: | 3-9m |
| Keyword: | Fiber Laser Cutting Machine | ||
| High Light: | laser metal cutting machine for sal,fiber laser cutter |
||
★Product Introduction

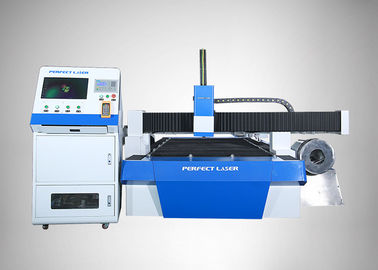

Perfect Laser is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments. In order to meet the demands of customers for plate cutting machines, Perfect Laser has developed and introduced a new fiber plate cutting machine on us own——model PE-F3015B. PE-F3015B uses high-quality screw guide from Taiwan amd Panasonic’s servo and drive. It can be applied to cut metal sheet, also cut the pipe. The pipe cutting diameter can reach 200mm, and can be customized by customers if needed, it sounds more humane. What else, the machine has added a rotation aid to solve the technical problems of bending and cutting. When launched, it went popular among new and old customers.
★Technical Data
| Name | Metal sheet and pipe fiber laser cutting machine |
| Model | PE-F3015B 500W(800W1000W2000W) |
| Maximum run speed | 90m/min |
| Laser Wavelength | 1080 nm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 50--2000W |
| X, Y-axis positioning accuracy | ≤±0.01mm |
| Repeated positioning accuracy of the table | ≤±0.01mm |
| The maximum load of the workbench | 800KG |
| Effective processing format | 1500*3000mm |
| Z-axis travel | 120mm |
| Volume | 4.6*2.3*1.8m |
| Power | 12KW |
| Water cooler | 2kw |
| Electricity power | 380v 50Hz±10% |
| Red light spot position | yes |
| Auxiliary gas | Oxygen, nitrogen |
| Pipe type | Round,oval,special-shaped pipe |
| Pipe Length | 3-9m |
| Diameter | 1mm-300mm |
★Product Advantages
1. Ruike 1000W fiber laser generator: Its longetivity is up to 100,000 hours. The beam is of high quality and there is almost no maintenance cost.
2. Added Rotary Aid: The technical problem of misaligned pipe bending is perfectly solved by this design.
3. Import Panasonic servo motor and driver: The cutting speed and stability was improved. More than that, the servo system enables it to operate smoothly and reliably. It has various response acceleration characteristics with free of maintenance;
4. Self-service refueling, alarm reminder: laser cutting machine track can be automatically refueled, which makes sure that the lubrication of the track at any time. And the laser cutting machine alarm reminding device can reflect the machine working conditions.
5. The use of universal ball, sawtooth work platform and the load of metal material for rapid feeding steady, which reduces the spark splash in the laser cutting accordingly.
6. Smoke evacuation device: The smoke evacuation device is supposed to extract smoke produced during the cutting process and reduce the pollution.
★Product Details
1.3HP high-power water chillers keeps the laser head always in a comfortable working temperature. The water’s temperature is able to be maintained at plus or minus 5 degrees. The water’s constant temperature makes the laser power more stable and makes the work faster.
2. Automatic focus laser cutting head (metal sensor) is selected from famous brands lasermach (US laser microphone) and PRECITEC (Germany Prest), with sensitivity, stability. Laser cutting head nozzle contact metal plate surface, cutting head moves up and down automatically with high sensitivity, stable operation and good reliability.Besides, it has no spark phenomenon obviously. Not only can it avoid the changes in air media and electromagnetic interference caused by failure,but also the damage of cutting head collision.
★Samples
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
