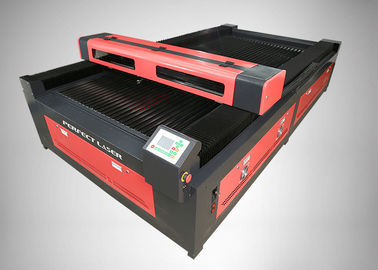

Multifunction CO2 Laser Engraving Machine Computerized Laser Engraver 60W
(Model:PEDK-130250)
Description
Perfect Laser is a professional manufacturer engaged in the research, development and production of automatic laser cutting machines. Our fully automatic laser cutting machine is of superior quality and affordable, and has been trusted and supported by our customers. The large-scale automatic laser cutting machine model is PEDK-130250, and the machinable amplitude reaches 1300X2500mm. And with a fully automatic stainless steel crawler-type working platform, very suitable for cutting and cutting cloth and leather materials, with a small slit, high speed, high accuracy, to meet the different needs of the apparel industry or other related industries.
Specifications
|
Model |
PEDK-130180 |
PEDK-130250 |
PEDK-160260 |
|
Working Area |
1300×1800mm |
1300×2500mm |
1600×2600mm |
|
Laser Power |
60W / 80W / 100W / 120W / 150W |
||
|
Laser Type |
Hermetic and Detached Co2 Laser Tube |
||
|
Engraving Speed |
1-60000mm/min |
||
|
Cutting Speed |
1-10000mm/min |
||
|
Repeat Location Accuracy |
± 0.0125mm |
||
|
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
||
|
Voltage |
220V(±10%) 50Hz |
||
|
Cooling Mode |
Water Cooling and Protect System |
||
|
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
||
|
Controlling Mode |
CNC Professional Control System |
||
|
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF |
||
|
Power Controlling Mode |
Laser Energy Combining Movement Control System |
||
|
Control Software |
Original Perfect Laser Engraving & Cutting Software |
||
Product Features
1. Excellent after-sales service: 24-hour online after-sales service, you can solve problems such as troubleshooting the machine at any time.
2. High production efficiency: The automatic laser cutting machine is equipped with an automatic feeding device, which greatly saves the labor cost, and the industrial fabric cutting machine has high precision and improves the production efficiency.
3. Using USB2.0 interface to achieve high-speed data transfer. And the main board has a large-capacity storage space, which can store up to 128 files and achieve 128 batch production of different products.
4. The machine is a multi-functional automatic multi-function processing equipment that integrates cutting, drawing and cutting. It can meet various processing needs of garments and other industries, and is convenient and user-friendly.
5. can be large-format processing: automatic laser cutting machine using automatic stainless steel crawler-type working platform, working width up to 1300X2500 mm. Can cut any graphics in the processing area, processing speed, cutting precision.
Application
Available Materials:
1. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
2. It’s widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
3. Wood material: wood engraving and cutting, MDF engraving, plywood cutting.
Application Industry:
Garment and leather, embroidery, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, decoration and upholster industry.
Product Advantage
|
Items |
Perfect Laser |
|
Thickness of Body Shell |
We adopt thicker body shell and the thickness reaches 3mm, |
|
Working Platform |
We adopts the US-imported working platform made of aluminum alloy, which is glossy, |
|
Laser Tube |
The lifespan is 10000 hours. Every laser tube must pass the and |
|
Laser Parts |
Our laser parts are manufactured through die stamping technology |
|
Protection Function |
Our laser engraving and cutting machine can turn off the laser |
|
Water-cooling Machine |
Our machines are equipped with the most advanced CW-5000 and |
|
Unique Light-adjusting |
Focus Length Adjusting Parts: |
|
Special Scale Design |
Scale is engraved at the edge of our working platform. It will be more |
Optional Item:
1) Rolling and Automatic Feeding System:
Realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
2) Imported Ball Screw Rod
High speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
