90 /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue

China Perfect Laser (Wuhan) Co.,Ltd. certification
China Perfect Laser (Wuhan) Co.,Ltd. certification
Recommedation is good. Reception is professional. Demo training is also very great. Wish more online training after getting the machine.

—— James

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Elane

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— John Lenson

Please develop more nice laser machines and with better prices, so we can sell your machines to more clients and gain larger markets. Thanks you.

—— Sammel

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Keline

Thanks for Perfect Laser's lasting supporting and guidence. With your help and instruction, I win more market share.

—— George

Good support. Finally got it up and running. Neat gizmo to learn CNC laser

—— Abby

through very good communication all problems solved, satisfied with my purchase

—— Alexandra

Good packaging, received product well.

—— Lareina

Professional, very helpful, great price. Will use again for other items A++++++

—— Wanda

I'm Online Chat Now

90 /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue

90  /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue
90  /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue
video play

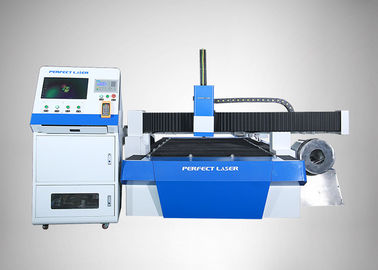

Large Image :  90 /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA
Model Number: PE-F3015B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 2-4 Weeks
Payment Terms: T/T, L/C,Paypal, Western Union
Supply Ability: 300 Units Per Month
Detailed Product Description
Product Name: Fiber Laser Cutting Machine For Round Metal Pipe And Sheet Cutting Color: White&blue
Keyword: Fiber Laser Cutting Machine Rated Output Power: 50--2000W
Maximum Run Speed: 90m/min Minimum Cutting Line Width: 0.1mm
X, Y-axis Positioning Accuracy: ≤±0.01mm Repeated Positioning Accuracy Of The Table: ≤±0.01mm
The Maximum Load Of The Workbench: 800KG Effective Processing Format: 1500*3000mm
Laser Wavelength: 1080 Nm

fiber laser cutting equipment


fiber laser cutter

90  /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue 0

90 /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting

Product Introduction

Perfect Laser is a company specializing in the production of fiber cutting machines. Our company has a professional technical team and can provide customers with excellent service. In order to meet the needs of customers in the market for the cutting of tube and tube materials, a tube and tube cutting machine of the fiber type PE-F3015B is introduced. The cutter uses Taiwanese screw guides and Panasonic servos and actuators, which can cut metal plates and pipes at the same time. The cutting diameter can reach 200mm, and can also be customized according to the needs of customers. In addition, this machine is also equipped with a very unique rotary assist device, which perfectly overcomes the technical problems that the pipe cannot be concentric when it is bent and cut, and it is widely concerned about once it is launched.

Technical Data

Name Metal sheet and pipe fiber laser cutting machine
Model PE-F3015B 500W(800W1000W2000W)
Maximum run speed 90m/min
Laser Wavelength 1080 nm
Minimum cutting line width 0.1mm
Rated output power 50--2000W
X, Y-axis positioning accuracy ≤±0.01mm
Repeated positioning accuracy of the table ≤±0.01mm
The maximum load of the workbench 800KG
Effective processing format 1500*3000mm
Z-axis travel 120mm
Volume 4.6*2.3*1.8m
Power 12KW
Water cooler 2kw
Electricity power 380v 50Hz±10%
Red light spot position yes
Auxiliary gas Oxygen, nitrogen
Pipe type Round,oval,special-shaped pipe
Pipe Length 3-9m
Diameter 1mm-300mm


Product Advantages

1. It is equipped with Panasonic servo motor and driver in Japan, which improves the cutting speed and stability of the machine. Maximum effective cutting range: 1500 * 3000mm, positioning accuracy: ≤ ± 0.05mm, maximum moving speed: 90m / min.
2. With the fiber laser controller, the system can automatically calculate and optimize the cutting path and the remote control handle can also control the motion path of the laser cutting head. The industrial computer installation optimization software controls the touch screen to adjust the distance between the laser head and the metal plate. More accurate intelligence.
3. PRECITEC auto-focus laser cutting head (metal sensor) and laser head are equipped. There is no obvious spark during operation, which can not only avoid a series of problems caused by electromagnetic field interference and air medium change, but also avoid the collision caused by the cutting head. damage.
4. The use of sawtooth and universal spherical work platforms enables fast and stable delivery of metal materials.
5. Using IPG1000W fiber laser generator, the photoelectric conversion rate is high and the beam quality is high, the working time can reach 100,000 hours, and there is basically no maintenance cost.
6. The machine track has an automatic refueling function that can ensure the lubrication of the track at all times, and an alarm reminding device is installed to monitor the working status of the machine at any time.
7. The machine uses a water-cooled cooling method, which allows the laser head to work in a constant temperature environment, so that the laser's fast and stable operation is more secure.


Product Details
1.3HP high-power water chillers to keep the laser head always in a comfortable working temperature. The temperature of the water can be maintained at plus or minus 5 degrees. The constant temperature of the water can stabilize the laser power, make work more stable and fast.
2. Automatic focus laser cutting head (metal sensor) selection of well-known brands lasermach (US laser microphone) and PRECITEC (Germany Prest), with high sensitivity, good stability. Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, stable operation, good reliability, no obvious spark phenomenon. Avoid the changes in air media and electromagnetic interference caused by the failure, and avoid cutting head collision damage.


90  /min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting,blue 1


Packaging & Delivery


1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.


Competitive Advantages

1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
