220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460

220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460

220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460
220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460
220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460
220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460
220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460
220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
2-3 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union, MoneyGram, Escrow
Supply Ability:
9000 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA
Model Number:
PEDB-460
Displacement Positioning Accuracy:
0.05mm/0.02mm
Marking Speed:
≤7000mm/s
Marking Size(can Be Customized):
300*400mm
Minimum Character Height:
0.2mm
Marking Repeatability:
<24 μrad
Marking Depth:
0.3mm(depending On The Machine)
Minimum Line Width:
0.06mm(depending On The Machine)
Source:
AC 220V 50KHz
Motor:
Stepper Motor
Displacement Repeat Positioning Accuracy:
0.02mm/0.01mm
Displacement Speed:
100mm/s--300mm/s
High Light:
fiber laser marking machine , laser marking equipment
Product Description

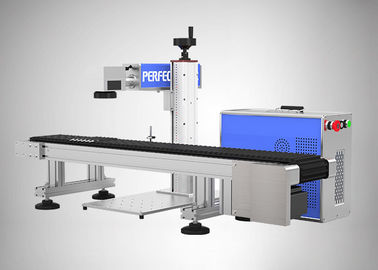

220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt

(Model:PEDB-460)




Description

This fiber laser engraving machine is especially designed for pens that need marking logos, numbers, code, designs and picutures. The marking content is permanet and personalized, with high quality and versatile.
This pen laser engraving machine is equipped with a customized pen conveyor belt. The speed and content can by set in software. There is a sensor to dectect the pen when it passing by and mark them one by one. The numbers of marking quantity also can be counted automatic.



220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460 0


Product Features

1. Equipped with automatic focusing system, humanized operation process;
2. Free maintenance of this laser marker pen. We will set all parameters before delivery. The small laser engraving machine for pens can work without any adjustment when you receive and no other consumptions.
3. Good-looking appearance, compact size, space-saving, maintenance-free, and suitable for harsh environments
4. Automatic and customized. The pen modules can be tailor- made by the pen size or the marked content. The small laser engraving machine for pens can greatly reduce the labor cost, tool cost, consumable cost.
5. Long service life, maintenance-free, 100,000 hours without consumables..
6. Easy for installation: We will supply the installation training video for our dear customers to install the best laser pen engraving machine.



220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460 1

220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460 2




Application



The pen laser engraving machine is widely used in exquisite patterns, trademarks and text pen marking industry, Applicable materials: gold and silver, stainless steel, iron, aluminum, copper, plastic products and other materials.


220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460 3



Specifications


Model NO. PEDB-460 Pen Laser Engraving Machine
Type 20W 30W 50W
Marking speed ≤7000mm/s
Marking size

110*110mm (standard)

customizable

Minimum character height 0.2mm
Marking repeatability <24 μrad
Marking depth 0.5mm(depending on the machine)
Minimum line width 0.06mm(depending on the machine)
power AC 220V 50KHz
Motor Stepper motor / servo motor (optional)
Displacement positioning accuracy 0.05mm/0.02mm
Displacement repeat positioning accuracy 0.02mm/0.01mm
Displacement speed 100mm/s--300mm/s
Model NO. PEDB-460 Pen Laser Engraving Machine
Type 20W 30W 50W
Marking speed ≤7000mm/s
Marking size

110*110mm (standard)

customizable






Sample Show



220V Automatic fiber Laser Marking Machine with Customized Conveyor Belt PEDB-460 4





Packaging & Delivery


1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
