Product Details:
Payment & Shipping Terms:
|
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | Mode Of Operation: | Pulsed |
|---|---|---|---|
| Color: | White | Power: | 20W 30W 50W |
| Central Emission Wavelength: | 1060-1070 Nm ,Q-switched Operation Output Power Adjustment Range 10%-100% | Emission Bandwidth (FWHM): | <10 Nm |
| Long-term Average Power Instability: | <5% | Pulse Width, (FWHM): | 100 Ns |
| Laser Switching ON Time: | 180 μsec | Polarization: | Random |
| High Light: | laser etching equipment,laser marking equipment |
||
Description

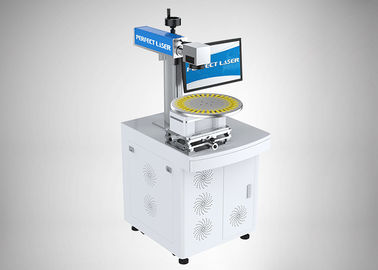

The animal ear tag laser marking machine is a very practical, efficient and cost-effective laser coding machine specially developed by our company for marking ears of poultry, animals and other animals. this machine adopts the integration of logo and material, which also makes it have incomparable anti-counterfeiting advantages for the same type of products. In addition, the machine is also equipped with our proprietary coding software and custom platform, not only can automatically sort can also input multi-word and two-dimensional code, more in line with the needs of the animal marker .
Product Features
1. the marking speed of the ear marker engraving machine is fast, and the marking can be completed at one time, thus saving the overall energy consumption and labor cost.
2. matching advanced coding software and customized work platform can improve the efficiency of marking.
3. comply with the Ministry of agriculture livestock ear tag coding equipment technical requirements, and can identify the two-dimensional code and other information.
Application
This animal ear tag laser marking machine is mainly applied in the identification of numbers or two-dimensional codes on animal ear tags (pigs, cattle, sheep) for the information management of animals and livestocks for animal breeding, epidemic prevention and meat quarantine.
Specifications
| Model No | PEDB-420 Animal Ear Tag Laser Marking Machine |
| Type | Standby |
| Computer | Includes PC |
| Laser Source | |
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Power | 20W 30W 50W |
| Central emission wavelength | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
| Net Dimensions | 143*62*101cm |
| Net Weight | 130 kgs |
| Gross Weight | 200 kgs |
| Laser system | |
| Scanning Speed | 0-7000mm/s |
| Marking Speed | 0-5000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling unit | Air cooled |
| Pilot laser | 650nm diode laser, visible red light for marking guide |
| Continuous working time | ≥16h |
| Humidity | 45～85% (no condensation) |
| Operating temperature | 0~40℃ |
| Control units | Laser Mark (English Version) |
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
