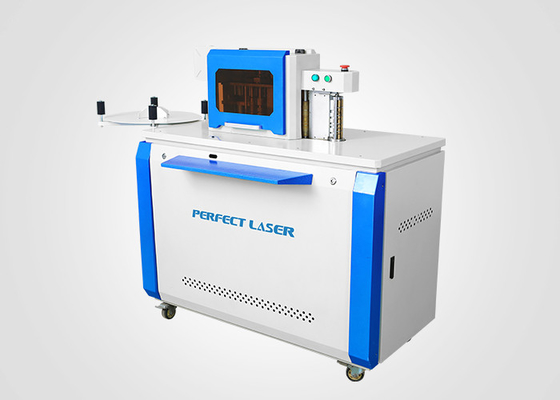

PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment

PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment

PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment
PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment
PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment
PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment
PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
5-10 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
3000 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PEL-600B
Product Name:
Channel Letter Bending Machine
Working Principle:
Automatic Feeding Bending And Slotting
Working Material:
Aluminum Profile, Flat Aluminum Profile.
Slotting Angle:
45°-135°
Bending Radius:
≥12mm
Profile Height:
≤150mm
Profile Thickness:
0.3mm-1.2mm
Equipment Power:
≤1500W
Equipment Size:
1350mm*700mm*1300mm
Equipment Weight:
300kg
Operating Voltage:
220V
Working Pressure:
0.6Mpa
High Light:
channel letter bender , channel letter equipment
Product Description



PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment

(Model:PEL-600B)


Description

With more than 20 years experience,Perfect Laser researched and developed this new type aluminum profile bending machine PEL-600B to meet the market for various advertising demends.This machine can be applied to Luminous boundless aluminum channel letter, folding edge luminous channel letter, resin luminous channel letter and others.

The channel bending machine can be slotted in 2 opposite sides. And the angle of the slotting knife is flexible. Automatic feeding, slotting and bending design of the channel bending machine help to improve the working efficiency. The whole process can be adjusted through the software. We , Perfect Laser, promise a free life-long update for the software.


Main Advantages

1. With automatic feeding, automatic double-sided slotting (slotting angle is 45째-135째), automatic bending,this machine is easy to operate.

2.High working speed, no separate production of acrylic caps.

3. Processing material height of the channel bending machine is about 30mm-128mm, material thickness is about 0.4mm-1.2mm.

4. The whole power of the aluminium profile bending machine is below 1500w,which will reduce the consumption of the energy.

5. It can support DXF, AI format of the various vector files.

6. Equipment size of the channel bending machine: 1350 * 700 * 1300mm.

7. Processing materials of the channel bender machine: aluminum profile, flat aluminum profile.

8. We can customize special specifications if you want.


Application
This channel letter bender machine can be used for logo, signs, neon signs, billboards, widely used in Luminous boundless aluminum channel letter, folding edge luminous channel letter, resin luminous channel letter and others. High processing efficiency, high precision, small error.

Technical Data

Model PEL-600B Aluminum Profile Bending Machine
Working Principle Automatic Feeding Bending And Slotting
Working Material aluminum profile, flat aluminum profile.
Slotting Angle 45°-135°
Bending Radius ≥12mm
Profile height ≤150mm
Profile thickness 0.3mm-1.2mm
Equipment power ≤1500W
Equipment size 1350mm*700mm*1300mm
Equipment weight 300kg
Operating Voltage 220V
Working pressure 0.6Mpa


Sample Show
PEL -600B Aluminum Profile Channel Letter Bending Machine , Channel Letter Bender Equipment 0

Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
