Product Details:
Payment & Shipping Terms:
|
| Working Area: | 3000mm/6000mm | Laser Power: | 500w/800w/1000w/1500w/2000w/2500w/3000w |
|---|---|---|---|
| Max. Moving Speed: | 100m/min | Max. Cutting Speed: | 35m/min |
| Positioning Accuracy: | 0.03mm | Min. Line Width: | 0.1mm |
| Servce: | Global | ||
| High Light: | fiber laser cutting equipment,laser metal cutting machine for sal |
||
Description

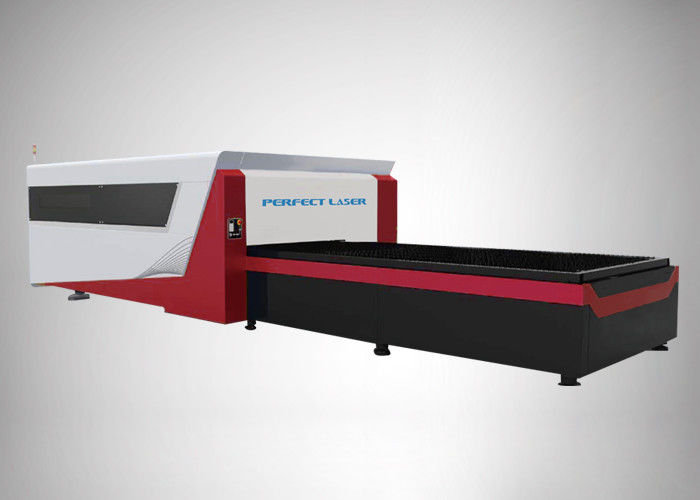

Perfect Laser is a professional laser cutting machine manufacture. In order to meet the market requirement for laser cutting machine, Perfect Laser now launch a new kind of CNC laser cutting machine. It has the two kinds of platform, that is the exchange platform to feed automatically, greatly improving working efficiency. This machine used plate welding structure . It can weld the steel plate with thickness of about 12 mm. The height of the exchange platform is high with chain-type transmission and dual rail, which can greatly save the time of feeding and unloading. Fully enclosed structure can effectively reduce the laser radiation. Since this kind of machine launched, it is widely praised by the customers at home and abroad.
Features
1. The middle part of the two platforms are not in the same level, which can Save time for feeding and unloading material in short time.
2. Fully enclosed design can greatly reduce damage to the health from the laser, especially for those countries who strictly required to the environmental protection.
3. The exchange platform with heavy capacity can be placed 8-10 mm carbon steel plate. The table has universal balls. There is a sheet metal clamping device beside the table, which can firmly fix the materials on the table to avoide workpiece movement.
4. If it was powered off or the chain was pulled off , the platform can be pushed in by hand. At the same time it has anti-collision protection device on the left side of the machine to protect of the machine from damaging.
5. Working platform plate was made of a thickness of 3 mm carbon steel plate, the service life is long. it dosen’t need the replacement in 8 months to 1 year.
6. The overall steel beam is very steel, the machine beam used a 17 mm thickness plate, and beam base’s thickness is about 30 mm.
7. Dust cover is made of the fire-retardant materials.There will not be break and pull off with a long time use, at the same time it can prevent the spark burning.
8. Using the well-known brand of Taiwan YCC helical rack, Taiwan's silver (HIWIN) 30 rail, Germany's Siemens electronic devices, and Japan's Yaskawa drive motor to ensure the accuracy of the machine work.
9. Faster Acceleration , repeated positioning accuracy is about 0.03mm,and its cutting accuracy can reach 7-8 silk.
Technical Data
| Model | PE-F30159ii | |
| Working area | 3000mm/6000mm | According to demands |
| Laser Power | 500w/800w/1000w/1500w/2000w/2500w/3000w | |
| Max. Moving Speed | 100m/min | |
| Max. Cutting Speed | 35m/min | |
| Positioning Accuracy | 0.03mm | |
| Reposition Accuracy | 0.02mm | |
| Min. line width | 0.1mm | |
Samples Show
Our service
Free Pre-Sales Consulting / Free Sample Marking
Perfect Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
Strict Quality Control of Production
Adopt advanced testing equipment, such as: laser power meter, laser testing machine, CNC high-precision processing machine, 3D measuring machine, Perfect Laser setup a complete & strict quality control system, which ensures the excellent quality of our machines.
5-7 Days Quick Delivery
We have mass production and stock & ready item, for these items, we offer 5-7 days quick delivery time. For big machine and special requirement, we will trade you as the priority customer and to produce your cargo in the first time.
1 Year Quality Guarantee
Perfect Laser offer 1 year guarantee for our machinery and 3 months guarantee for consumables. And to became you are our long-term customer, we will prolong the quality guarantee period specially for you.
12 hours Quick Feedback & After-Sales Service
We will offer "Training Video", "Instruction Book", "Operation Manual" to you, which is easily to learn and operate.
We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine.
We will offer plenty of technical support online, just like detailed technical and installation instructions. For example, when you meet a maintenance problem, we will make a video with completed and detailed operation process according to the problem, it just seems that I am on the spot by your side to instruct you how to deal with the problem.
Quick Back-up Parts Available & Technical Assistance
Our extensive inventory of spare parts means replacements get shipped to you as quickly as possible. Immediate technical assistance is only an email or phone call away.
Free Training Service
We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Perfect Laser machines.
Special Designing, Customized, OEM Order is accepted
Perfect Laser is rather willing to help you to realize your special idea and requirement by our innovative ability. So please do not hesitate to contact us when you need special design or customized machine and OEM machines.
Perfect Laser, You Best Choice
To be the customer of Perfect Laser, we will cooperate based on complete trust and comfortable. You will find we are a reputable supplier and worth your trust. We understand every customer is valuable. We will value every chance you give to us.
