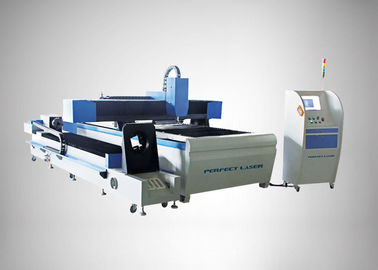

90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting

China Perfect Laser (Wuhan) Co.,Ltd. certification
China Perfect Laser (Wuhan) Co.,Ltd. certification
Recommedation is good. Reception is professional. Demo training is also very great. Wish more online training after getting the machine.

—— James

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Elane

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— John Lenson

Please develop more nice laser machines and with better prices, so we can sell your machines to more clients and gain larger markets. Thanks you.

—— Sammel

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Keline

Thanks for Perfect Laser's lasting supporting and guidence. With your help and instruction, I win more market share.

—— George

Good support. Finally got it up and running. Neat gizmo to learn CNC laser

—— Abby

through very good communication all problems solved, satisfied with my purchase

—— Alexandra

Good packaging, received product well.

—— Lareina

Professional, very helpful, great price. Will use again for other items A++++++

—— Wanda

I'm Online Chat Now

90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting

90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting
90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting
video play

Large Image :  90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA
Model Number: PE-F3015B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 2-4 Weeks
Payment Terms: T/T, L/C,Paypal, Western Union
Supply Ability: 300 Units Per Month
Detailed Product Description
Product Name: Fiber Laser Cutting Machine For Round Metal Pipe And Sheet Cutting Maximum Run Speed: 90m/min
Laser Wavelength: 1080 Nm Minimum Cutting Line Width: 0.1mm
Keyword: Fiber Laser Cutting Machine Rated Output Power: 50--2000W
X, Y-axis Positioning Accuracy: ≤±0.01mm Repeated Positioning Accuracy Of The Table: ≤±0.01mm
The Maximum Load Of The Workbench: 800KG Effective Processing Format: 1500*3000mm
Highlight:

fiber laser cutting equipment

,

laser metal cutting machine for sal


90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting 0

Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting


Product Introduction


Perfect Laser, professional fiber laser cutting machine manufacturers, with advanced cutting machine equipment, first-class technology, quality service, get good reputation in fiber lasercutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, Perfect Laser launched the muti-functional Metal Pipe and Sheet Fiber Laser Cutting Machine(Model:PE-F3015B). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of cutting machine can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.


Technical Data

Name Metal sheet and pipe fiber laser cutting machine
Model PE-F3015B 500W(800W1000W2000W)
Maximum run speed 90m/min
Laser Wavelength 1080 nm
Minimum cutting line width 0.1mm
Rated output power 50--2000W
X, Y-axis positioning accuracy ≤±0.01mm
Repeated positioning accuracy of the table ≤±0.01mm
The maximum load of the workbench 800KG
Effective processing format 1500*3000mm
Z-axis travel 120mm
Volume 4.6*2.3*1.8m
Power 12KW
Water cooler 2kw
Electricity power 380v 50Hz±10%
Red light spot position yes
Auxiliary gas Oxygen, nitrogen
Pipe type Round,oval,special-shaped pipe
Pipe Length 3-9m
Diameter 1mm-300mm




Product Advantages
1.The metal laser cutter's controller with a touch screen operating system:
2. The metal laser cutter is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
4.The metal laser cutter with Raycus 1000W (IPG1000W) fiber laser generator:photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.


Product Details
1.3HP high-power water chillers to keep the laser head always in a comfortable working temperature. The temperature of the water can be maintained at plus or minus 5 degrees. The constant temperature of the water can stabilize the laser power, make work more stable and fast.

2. Automatic focus laser cutting head (metal sensor) selection of well-known brands lasermach (US laser microphone) and PRECITEC (Germany Prest), with high sensitivity, good stability. Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, stable operation, good reliability, no obvious spark phenomenon. Avoid the changes in air media and electromagnetic interference caused by the failure, and avoid cutting head collision damage.


Samples
90 m / min Fiber Laser Cutting Machine For Round Metal Pipe / Sheet Cutting 1


Packaging & Delivery



1. Prompt deliver at the very day.


2. Well-trained and disciplined packing team.


3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


4. Sophisticated and professional logistic agent.



Competitive Advantages

1. 100% custom pass guaranteed.


2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


3. Flexible and Untraceable payment terms.


4. Good after-sale service.


5. We offer high quality products at competitive price in quick delivery.
