Product Details:
Payment & Shipping Terms:
|
| Working Area : | 1300×2500mm | Laser Power : | 60W / 80W / 100W / 120W / 150W |
|---|---|---|---|
| Laser Type : | Hermetic And Detached Co2 Laser Tube | Engraving Speed: | 1-60000mm/min |
| Cutting Speed : | 1-10000mm/min | Repeat Location Accuracy : | ± 0.0125mm |
| Cutting Platform: | Professional Thickening Strip Or Honeycomb Work Table | Controlling Mode: | CNC Professional Control System |
| Highlight: | co2 laser cutting system,co2 laser engraver |
||
CNC Professional Control System CO2 Laser Engraving Machine For Carpet Jeans And Toys
laser engraving machine fixed with a selective rolling & automatic feeding system, which make the whole cloth processing steps finish one time, suitable for engraving/cutting on very long work piece, such as one roller of cloth /fabric /leather /garment. Auto Feeding Laser Engraving Machine especially applied in Fabric and Garments Industry.
★ Features:
1) 150w/180w CO2 laser tube, able to engrave and cut most metal and non-metal materials.
2) Water cooling system (CW-5200) automatically controls the water temperature, cools and protects the laser tube.
3) Ball screws transmission driven by Japan Panasonic servo motors, greatly increased the machine cutting precision.
4) Air pump, protects the material being cut from fire and helps to get better effect.
If cut steel, oxygen is necessary.
5) Exhaust fan and pipes, remove dust and smoke to protect optical parts and the user.
6) Aluminum blade table, holds hard sheet materials. Optional tables: honeycomb table, up/down lifting table.
7) Leetro USB controller system. Machine is able to work without connecting to a computer.
8) Imported lens and mirrors, brings high cutting precision.
9) Machine X and Y axis both are cast aluminum structure.
10) Linear rails from Taiwan, more stable and precise.
11) English Lasercut 5.3 software.
12) Options: red dot, up/down lifting table, honeycomb table, rotary, air compressor, etc.
★ Application:
Applicable material
1)Cutting: acrylic,perspex,wood,rubber,cloth,fabric,paper,leather,dual-color boards,foam,plastic,PVC,etc.
2)Engraving:acrylic,stone,marble,granite,jade,crystal,glass,perspex,wood,rubber,cloth,fabric,paper,leather,dual-color boards, foam,plastic,PVC,metal-coating etc.
★ Technical Parameters:
| Model | PEDK-130250 |
| Working Area | 1300×2500mm |
| Laser Power | 60W / 80W / 100W / 120W / 150W |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Voltage | 220V(±10%) 50Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser Engraving & Cutting Software |

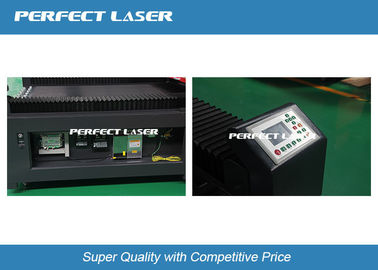

★ Machine Parts
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
CNC Professional Control System CO2 Laser Engraving Machine For Carpet Jeans And Toys.pdf
