Product Details:
Payment & Shipping Terms:
|
| Laser Power: | 50W 60W | Working Area: | 900* 600mm |
|---|---|---|---|
| Cooling Mode: | Circulation Water Cooling And Protection System | Color: | Blue & White/ Yellow& Grey |
| Software: | Reader / LaserCut 5.3 | Motor: | Stepper |
| High Light: | co2 laser engraver,co2 laser engraving cutting machine |
||

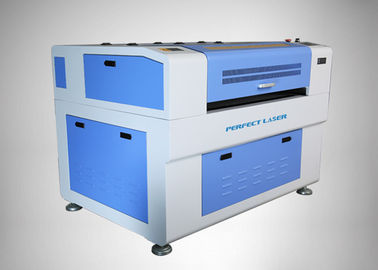

50W 100W 120W 150W CO2 Laser Engraver Signs , MDF acrylic laser cutting machine
(Model:PEDK-9060)
Product Introduction:
9060 Co2 laser engraving is a multi-function laser process device which combines the functions of drawing, engraving and cutting. It adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting, carving for clothing and other fields. This Laser Engraving Machine not only have all the large scale engraving machines function, but also have mechanical design, capability, and working area perfect improved.
Features:
1. Water cooling and alarm protection system, using CW-3000 chiller temperature display, to avoid excessive combustion, to protect the electricity through the water cycle.
2. Cutting precision, no focal edge, no yellow side, equipped with high-precision metal rail and stepper motor, with the honeycomb platform, perfect carving 1X1 mm letters to meet the highly accurate job requirements.
3. LCD touch screen, CO2 non-metallic laser engraving cutting machine support USB interface and DSP offline control system, external USB data cable or U disk, support BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG , DXF and other file formats.
4. CO2 non-metallic laser engraving cutting machine can choose the United States imported focus lens and lens, China's thunder stepper motor, Japan imported servo motor, a variety of configurations with a variety, there is always a to meet your needs.
5. Perfect laser independent development of CO2 non-metallic laser engraving cutting machine software, you can set the parameters, to envelope cutting, set the carving area, the frame cutting.
Application:
1. Applicable materials: acrylic, plexiglass, wood bamboo, rubber, paper, leather, cloth, wool, plastic, rubber, tiles and other non-metallic materials. The following are the same as the "
2. Applicable industries: architectural models, handicrafts, lens panels, veneer cut flowers, advertising products, light boxes signs, crystal characters, display stand, packaging, models, toys, furniture and other industries.
Technical Parameters:
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 60w / 80w / 100w / 130w |
| Engraving Area | 900×600mm |
| Engraving Speed | 0-60000mm/s |
| Cutting Speed | 0-10000mm/s |
| Repeating Location Accuracy | ±0.0125mm |
| Working Voltage | 220V ±10% 50HZ |
| Machine Power | 900w |
| Controling System | CNC professional controlling system |
| Supporting Graphics Formats | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
| Cooling Mode | CW-3000 Water Chiller with protection function |
| Auxiliary Devices | Exhaust fan & exhaust pipe |
| Cutting Platform | Professional Cellular platform / strip work table |
| Power Control Mode | Laser power and moving system cooperate |
| Control Software | Original Perfect Laser laser engraving and cutting software |
| Machine Size | 1400*960*1150mm |
Samples:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
