2019 5000HZ New Style Air Cooling 3D Crystal Laser Inner Engraving Machine

2019 5000HZ New Style Air Cooling 3D Crystal Laser Inner Engraving Machine

2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine
2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine
2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine
2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine
2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine
2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
7-10 working days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
500 Units Per Month. MoneyGram
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / SGS / TUV
Model Number:
PE-DP-C Series
Model NUMBER:
PE-DP-C Series
COOLING:
Air Cooling
WEIGHT:
75 Kgs
AVERAGE LIFE LD:
>20000 Hours
MAX SPEED:
5000 PIONTS / Second
Cooling Mode:
Air Cooling
After-sales Service Provided:
Engineers Service Overseas
High Light:
laser engraving machine , 3d laser engraving system
Product Description



2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine 0

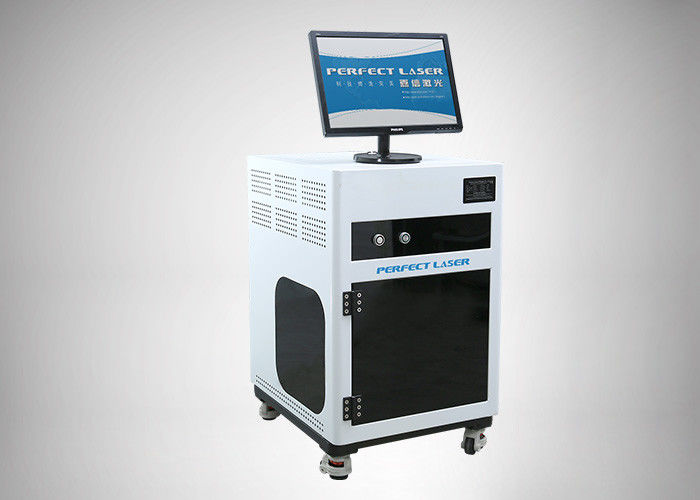

2019 5000HZ New Style Air Cooling 3D Crystal Laser Inner Engraving Machine

(Model:PE-DP-C)



★ Application of 3D Crystal Laser Inner Engraving Machine


Applicable materials: all familiar surface materials, such as crystal, glass, acrylic, decorative materials,3D laser crystal carving machines are widely used in many consumer places, such as tourism, hotels, photo studios, galleries and advertisements. They are also widely used in urban scenic spots, photo printing shops, wedding photos and personalized gift shops


★ Description of 3D Crystal Laser Inner Engraving Machine



It is also called laser crystal carving machine, 3D portrait carving machine, cup carving machine. A camera is added to take pictures of 3D human figures on the human body, and laser inlay technology is used to make beam points to form 3D human images, which are mainly used to carve 2D or 3D designs in crystal, glass, acrylic and other transparent materials. Can sculpt 2D or 3D figures, trophies, etc. Or for mass production of other 2D or 3D plants, buildings and other model products.thecamera is added to take pictures of 3D human figures on the human body, and the laser inner carving technology is used to make beam points, so as to form 3D human images.


★ Product Features of 3D Crystal Laser Inner Engraving Machine



1. Automatic laser positioning system, which can track the optical path, adopts high precision motion control system to ensure the high quality of the finished products.
2. The internal laser engraving and material surface engraving function adopts the special designed high-power diode pumped laser equipment.
3. Pulse laser power constant technology is adopted to improve the high efficiency and quality of laser engraving.
4. No special installation is required, the device is plug and play, convenient and fast;
5. The equipment is modular, the machine is easy to maintain, and the laser collimation technology and the closed control system can run continuously for 24 hours.
6. Constantly improve image processing technology to achieve unprecedented carving effect;
7. Without any carving traces, the first image is used to sculpt "zero-width" stitching technology.
8. Suitable for engraving on any crystal material and surface of any material; Internal crystal carving and material surface text speed is very high;
9. It can reach 120 * 120 * 100 mm, and the Mosaic technology "zero width" sculpture can meet the personalized needs;

Our products have been exported to Germany, Norway, Poland, Finland, Spain, the United Kingdom, France, Russia, the United States, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


★ Specifications of 3D Crystal Laser Inner Engraving Machine



Model PE-DP-A1 PE-DP-A2 PE-DP-C1 PE-DP-C2
LASER YAG Diode Pump
AVERAGE LIFE LD >20000 Hours >12000 hours >20000 Hours
MAX FREQUENCY 5000HZ 3000HZ 5000HZ
MAX RANGESUPPORT SPLIT 400mm x320mmx150mm 400mm x300mmx120mm 100mm x 100mm x100mm

120mm x 120mm
x 100mm

FOCAL LENGTH 120mm 100mm 120mm 165mm
ACCURACY 20μm~40μm 20μm~40μm 40μm~80μm
MAX SPEED 5000 PIONTS / Second
REPEAT OFFSITE 10~20μm 10μm
POWER <350W 220v/50Hz <350W110v/60Hz

<400W 100V-120V /50Hz ;
200v - 240V /60Hz

WEIGHT 85 kgs 75 kgs
COOLING Air cooling
ENVIRONMENT Less dust and shock, Temperature 10-35°C, humidity < 85%
FILE FORMAT BMP JPG DXF OBJ WRL 3DS STL
APPLICABLE MATE All transparent material, Glass,Crystal, PMMA, etc.
PACKAGE SIZE 1070mm x 970mm x 1450m 1080mm x 780mm x 1310mm
MACHINE SIZE 800mm x 900mm x 980mm 550mm x 650mm x 850mm


★ Sample Show of 3D Crystal Laser Inner Engraving Machine
2019 5000HZ  New Style Air Cooling 3D Crystal Laser Inner Engraving Machine 1
