1. These data can be time, date, production code, bar code, two dimension code, consumption information, or manufacturer's LOGO, product tracking information and other data, and so on.
2.It can be widely used in pharmaceutical, chemical, food, building materials, tobacco, ceramics, electronics and other industries.
3. PM-150 continuous ink jet coding machine is a kind of fast, reliable, non-contact ink-jet printing machine.
4. It can spray in most objects with online printing of all needed data .
PM-150 continuous ink jet coding machine is a kind of fast, reliable, non-contact ink-jet printing machine,it can spray in most objects with online printing of all needed data .These data can be time, date, production code, bar code, the two dimension code, consumption information, or manufacturer's LOGO, product tracking information and other data, and so on. It can be widely used in pharmaceutical, chemical, food, building materials, tobacco, ceramics, electronics and other industries.
Ink system to supply nozzle ink, the ink in the nozzle to form a continuous flow of ink, the ink flow and flow came back to the ink to recycle in the system.When need to spray printing, spray used in printing ink drops from the ink flow deflection, leave the nozzle jet printing on the product, in the process of spray printing products in contact with nozzle.Spray printing process is controlled by electronic components, to spray print data is stored in the electronic components.Through the display of spray print data editing and operation.
Usually the spurt the code machine and production line installation, so that when the product after spraying, printing opportunities spray print the required information on the product.Use magic eye can guarantee spurts India synchronization with the presence of the product.

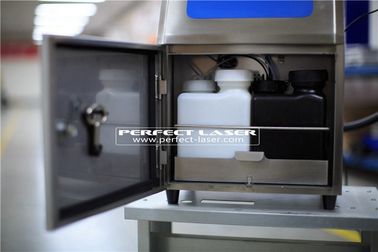

Spurt the code machine is composed of a chassis and nozzle.Chassis with electronic components, the ink system and a power supply, and display.Nozzle through a flexible duct connected to the back of the machine.
Specifications
|
Model |
PM-150 Fast Speed Ink Jet Printer |
|
|
Machine features |
body |
Stainless steel 304, processing via the surface |
|
Outline Dimension |
Height: 528mm, Depth: 264mm, Width: 325mm |
|
|
power |
115V,Applied voltage range85-132Vac,230V,Applied voltage range 170-264Vac. |
|
|
Pressure |
Nomal:4.48bar, malfunction:6.2bar. |
|
|
Spray-head size |
38mmX170.1mm |
|
|
Printing Distance |
small:3.5mm middle:10mm |
|
|
Spray print lines |
1-3 lines, spray 1 line pattern of 34 points higher, or4 line7points,or 6line 5points characters. |
|
|
Character Height |
|
|
|
Printing functions |
Characters bold as many as nine times, with the function of rotation;Spray printing height, width and delay is adjustable automatic shift, date between timely word format; Fixed and variable text, upper and lower case characters, real time clock function, can spray print to seconds;USB design call/spurt the code machine data, parameter backup restore function/software system upgrade;Serial number function, with both hex batch number counting function and counting function, reverse jet printing function, timing information features flexible date and time format options, automatic date calculation function |
|
Configuration
| Name | Details | Quantity | Remark |
|
spray-head
|
Jet nozzle | 1unit | |
|
Spray chamber, detect very positive and negative high voltage, etc |
|||
|
main pump
|
Mike pump
|
1unit | |
| filter | The main filter, ink, dilution, on-line filter, buffer filter | 1unit | |
| power | 220V | 1unit | |
|
Radio-tube
|
Nozzle valve, ink valve, the valve viscosity, clean the valve, recycle valve |
1unit | |
|
Screen and program Controller |
5.4 inch touch screen
|
1unit | |
|
Motherboard, single-chip microcomputer and the core board
|
|||
|
holder
|
Two-dimensional stet
|
1unit | |
|
electronic switch
|
optical fiber sensors
|
1unit | |
|
consumable items
|
The ink and thinner
|
1unit |
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
