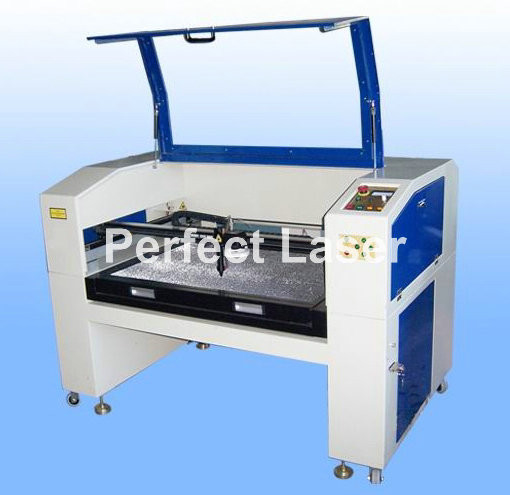

CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet

CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet

CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet
CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet
CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet
CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
10-20 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / SGS / TUV
Model Number:
PEDK-10060 CCD
Product Name:
CCD Auto Recognition Laser Cutting Machine
Application:
Laser Engraving/Laser Cutting
Laser Type:
CO2, Hermetic And Detached Co2 Laser Tube
Working Area:
1000mm*600mm
Control Software:
Reader Engraving & Cutting Software
Cutting Platform:
Professional Thicken Strip/ Honeycomb Working Table
Laser Power:
60w
Cooling Mode:
Water Cooling
Certification:
CE / ISO / SGS / TUV
After-sales Service Provided:
Engineers Service Overseas
High Light:
co2 laser cutter , co2 laser cutting system
Product Description

     CCD Auto Recognition Laser Cutting Machine PEDK-10060 CCD

Description

CCD Auto Recognition Laser Cutting Machine compensate automatically to pinpoint deformation of the fabric, it ensures the accuracy of cutting, shorten cutting path of human-based software design, saves time and increases efficiency for user, especially applied in trademarks and garments.

Specifications



Model

PEDK-10060 CCD

Working Area

1000×600mm

Laser Power

60W

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

1-60000mm/min

Cutting Speed

1-10000mm/min

Repeat Location Accuracy

± 0.0125mm

Laser Power Controlling

1-100% Manual Adjustment and Software Controlling

Voltage

220V(±10%) 50Hz

Cooling Mode

Water Cooling and Protect System

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Controlling Mode

CNC Professional Control System

Support Graphics Formats

BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG,
DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT

Power Controlling Mode

Laser Energy Combining Movement Control System

Control Software

Original Perfect Laser Engraving & Cutting Software


Product Features

1. Adopt “CCD camera recognition system” to realize automatically find the edge of label, then auto point and cutting along the edge, high efficiency and reduce the material waste.
2. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
3. LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
10. Red Light Pointer realizes the exact position without laser.

Application

Available Materials:
1. It’s widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen
cutting, denim engraving and cutting.
2. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
3. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.

Application Industry:
Trademarks, advertisement, arts and crafts, toys, car, mechanism, electron, as well as in embroidery, clothing and other industries.

Product Advantage



Items

Perfect Laser

Thickness of Body Shell

We adopt thicker body shell and the thickness reaches 3mm, which is
 more safe and
 distortion prevention for 5-10 years.

Working Platform

We adopts the US-imported working platform made of aluminum alloy, which is glossy,
load-bearing, and not easy to deform.

Laser Tube

The lifespan is 10000 hours. Every laser tube must pass the professional
 inspection just before delivery.
Light spot is more exquisite and precise.

Laser Parts

Our laser parts are manufactured through die stamping technology and on-line
lamination process, which are high-precision.

Protection Function

Our laser engraving and cutting machine can turn off the laser source
 automatically when the protection
 cover is open, which make the operation safer and
 harmless.

Water-cooling Machine

Our machines are equipped with the most advanced CW-5000 and
 CW-5200 water-cooling machine with good cooling effect, low noise and low power consumption.

Unique Light-adjusting

Focus Length Adjusting Parts:
Easy to find the center of the lens and find the right focus distance.

Special Scale Design

Scale is engraved at the edge of our working platform.
 It will be more convenient foroperators to check the position
 of material and improve the accuracy
 of engraving or cutting so as not to waste materials.


Sample Show


CCD Auto Recognition CO2 Laser Cutting Machine For Cloth / Shoe / Jeans / Carpet 0
Packaging & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
