Product Details:
Payment & Shipping Terms:
|
| Product Name: | CNC Automatic Channel Letter Bending Machine | Application: | Aluminum/stainless Steel/Carbon Steel /galvanized Sheet |
|---|---|---|---|
| Material / Metal Processed: | Stainless Steel | Raw Material: | Steel Bar |
| Letter Auto Bending Machine Thickness: | 0.5-0.8 Mm | Letter Bending Thickness For Alu: | 0.5-1.5 Mm |
| Stainless Steel Bending Thickness: | 0.5 -1mm | Galvanize Plate Bending Thickness: | 0.5 -1.0 Mm |
| Certification: | CE / ISO / FDA SGS / TUV | After-sales Service Provided: | Engineers Service Overseas |
| High Light: | channel letter bender,channel letter equipment |
||

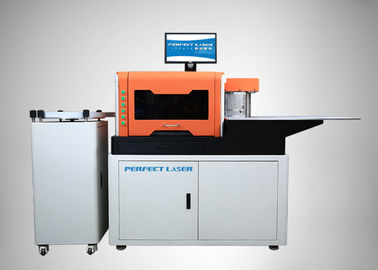

Channel letter bending machine for 160mm Width,1.2mm thickness Stainless Steel, Aluminum, Galvanized Plate
Description
Channel Letter Bending Machine (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
Application
1) Applicable Materials: Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending ect.
2) Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
Specifications
|
Model: |
PEL-200 |
|
Type |
PC Control Type For All SS, MS, Al materials |
|
Bending Material: |
Can bend all kinds of Stainless Steel, Carbon Steel, Galvanize Plate, Aluminum, etc..... |
|
Processed thickness: |
Aluminum: 0.5 - 1.5 mm Stainless steel: 0.5 -1.0 mm Carbon Steel: 0.5 – 1.0 mm Galvanize Plate: 0.5-1.0 mm |
|
Max. processed width: |
<180 mm |
|
Voltage: |
220V |
|
Size: |
1740*760*1450 mm |
|
Weight: |
400KG |
|
File format |
PLT |
|
Feed speed: |
5~20 m/ min |
|
Precision |
0.05 mm |
|
Remark: |
Computer system and Computer Screen is not included in Price. User can use any computer to run our machine. |
Sample Show
Product Features
1) Friendly man-machine interface, simple configuration, touch-screen operation. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.
2) A unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.
3) The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 130 °.
4) High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.
5) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.
6) Wide range of applications: CNC Bending machine can process 0-1.5mm strip of aluminum, galvanized steel, iron and other metal sheet.
7) It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting machine to realize the advertisement processing.
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems after receiving the product, please feel free to contact us.
Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia,
USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
05-2 Perfect Laser-Channel Letter Bending Machine PEL-200 (orange).pdf
