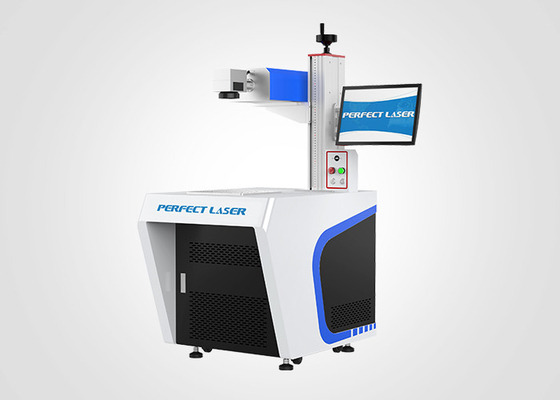

Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic

Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic

Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic
Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic
Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic
Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic
Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic
Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
5-10 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
3000 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PE-UV-3D
Model:
PE-UV-3D
Lase Wavelength:
335nm
Pulse Width:
<25ns@30khz
Minimum Character:
0.2mm
After-Sales Service Provided:
Engineers Service Overseas
Certification:
CE / ISO / FDA SGS / TUV
Payment:
T/T, L/C, PayPal, Western Union
High Light:
3D uv laser marking machine , 3D uv laser engraver , uv laser engraver for silicon
Product Description

3D UV Laser Engraver Machine Price For Ceramics Plastic Marking

(Model:PEDB-UV-3D)



Introduction



The UV laser engraving machine adopts imported core components and high quality UV laser source, equipped with high-speed and high-precision 3D vibroscope laser scanning system, combined with the 3D special software and control system independently developed by Perfect Laser can perfectly achieve fine marking of arbitrary curved workpiece can also be used for deep engraving plastic. UV laser engraving machine is mainly used for ultra fine marking and special materials marking, engraving and cutting. The ultra-fine laser processing, which is widely used in the high-end market, leads the laser processing into a new era.





Features



1.The UV laser marking plastic stable performance, small size, low power consumption, high electro-optical conversion efficiency, long service life;

2 Its laser beam quality and price is good, the output laser stability is high, marking effect is easy to debug;

3. The UV laser engraving machine high average power, high repetition frequency, marking speed is faster;

4. It adopts marble working platform, with good shock resistance and stress resistance, good flatness, high stability.





Application



It is suitable for processing materials with large thermal amplitude response. Can be matched with the production line, automatic loading and unloading, automatic loading and unloading system, mainly used for superfine marking, engraving.

UV laser marking machine is especially suitable for food, pharmaceutical packaging and glass material rapid segmentation, silicon chip marking and complex silicon chip graphic cutting.





Fast Speed High Precision 3D UV Laser Engraver For Glass Silicon Graphic 0





Technical Data



Model PE-UV-3D
Product name Uv laser marking machine
Laser wavelength 335nm
Minimum line width 0.015mm
Minimum character 0.2mm
Laser output power 3w/5w@30khz
Spot quality(㎡) <1.2
Spot diameter 1.0mm(+/-0.1)
Pulse repetition frequency 10-120khz
Pulse width <25ns@30khz
Power demand 100-240v single phase,50-60hz




Packaging & Delivery



1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:Any questions or problems after receiving the production, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.





Competitive Advantages



1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.
