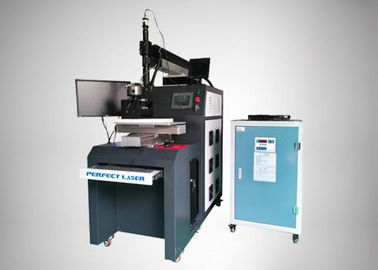

Multi - Function CNC Laser Welding Machine 1200W Water Flow Automatic Protection

Multi - Function CNC Laser Welding Machine 1200W Water Flow Automatic Protection

Multi - Function CNC Laser Welding Machine 1200W Water Flow Automatic Protection
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
10-15 working days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
5000 Units Per Year
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PE-W300D/400D/500D
Model:
PE-W500D 300D 400D
Project:
Tender Specifications
Maximum Output Power:
12KW
Peak Output Power:
500W
Full Mirror:
Reflectivity≥99.7%
Power Supply Feedback Type:
Current Feedback
Laser Wavelength:
1.064μm
Laser Head Adjustment:
360 Degrees
Cooling System:
Double Cycle System, Heat Exchange Titanium Tube, Over Temperature Alarm, Flow Protection, Water Level Protection.
Control System:
Industrial Computer CNC2000 Control Software
High Light:
laser welding equipment , laser welding machinery
Product Description

1200W Water Flow Automatic Protection YAG Multi-

Function CNC Laser Welding Machine

(Model: PE-W300D 400D 500D)





Product Introduction Of Cnc Laser Welding Machine



This product is mainly composed of laser, laser power supply, cooling system, light focusing system, control system and two-dimensional table, CNC lifting table, rotating fixture, coaxial monitoring system, blowing protection system and so on. Through the CNC2000 control system, according to the shape of the work piece from the teaching programming function of the welding trajectory programming, automatically generate the table movement trajectory. And can carry out a variety of information processing, laser welding machine to achieve the functional control.



Product Features Of Cnc Laser Welding Machine



1.This cnc laser welding machine adopts Germany's advanced combined gold-plated reflective laser cavity technology, the output power is high and the beam mode is excellent.

2. Double pulse xenon lamp, constant current switching power supply, programmable pulse, intelligent system management, with misuse and over-temperature water flow automatic protection.

3. Airtight chamber,airtight chamber, manual table lifting mechanism, automatic rotating mechanism and coaxial monitoring system is optional for this cnc laser welding machine.

4. The three-axis table system and the light guide system are controlled by the industrial computer or the numerical control system, so that three-axis or four-axis motion can be realized.

5. The welding groove of this cnc laser welding machine is smooth and beautiful, no need for treatment after welding, high welding quality, no pores, can reduce or optimize the impurities of the base metal, and can be refined after welding.





Technical Date Of Cnc Laser Welding Machine



number project Tender specifications
1 Input voltage Three-phase four-wire system, 380V ± 5%
3 Full mirror

Reflectivity≥99.7%



4 Power supply feedback type Current feedback
5 Condenser chamber Gold-plated single-chamber design, dual-lamp single rod
6 Laser wavelength

1.064μm



7 Beam divergence angle ≤8mrad/m
8 Peak output power 500W
9 Laser head adjustment 360 degrees
10 Pulse frequency 1~150Hz
11 Pulse Width 0.1~20ms
12 Current regulation 50-500A
13 Beam expander

3 times



14 Focus spot diameter 0.2-2mm
15 X-axis and Y-axis travel X*Y=300mm*300mm
16 Table size X*Y=400mm*400mm
17 Moving speed range 0-50mm/s
18 Reset accuracy

0.03mm



19 positioning accuracy ≤0.025mm
19 Z axis

Electric lift height 200mm

Manual lift 100mm

20





Rotating fixture

Diameter Ф100mm rotating fixture, angle 0-90º manually adjustable, can be locked in any position between them, using stepper motor drive, step equivalent of 0.01 degrees, positioning accuracy of 0.1 degrees, repeat positioning accuracy of 0.05 degrees.





Application Of Cnc Laser Welding Machine



Applicable materials: This cnc laser welding machine is suitable for automotive parts welding, lithium ion battery seal welding, electronic parts precision spot welding.

Applicable industries: This cnc laser welding machine is widely used in aviation, machinery,electronics,communications,power,chemicals,automotive manufacturing, institutions and research institutes.





Sample Of Cnc Laser Welding Machine

Multi - Function CNC Laser Welding Machine 1200W Water Flow Automatic Protection 0Multi - Function CNC Laser Welding Machine 1200W Water Flow Automatic Protection 1







Packaging & Delivery



1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.





Competitive Advantages



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
